5. Lift the hard drive carrier straight up and out of the chassis.

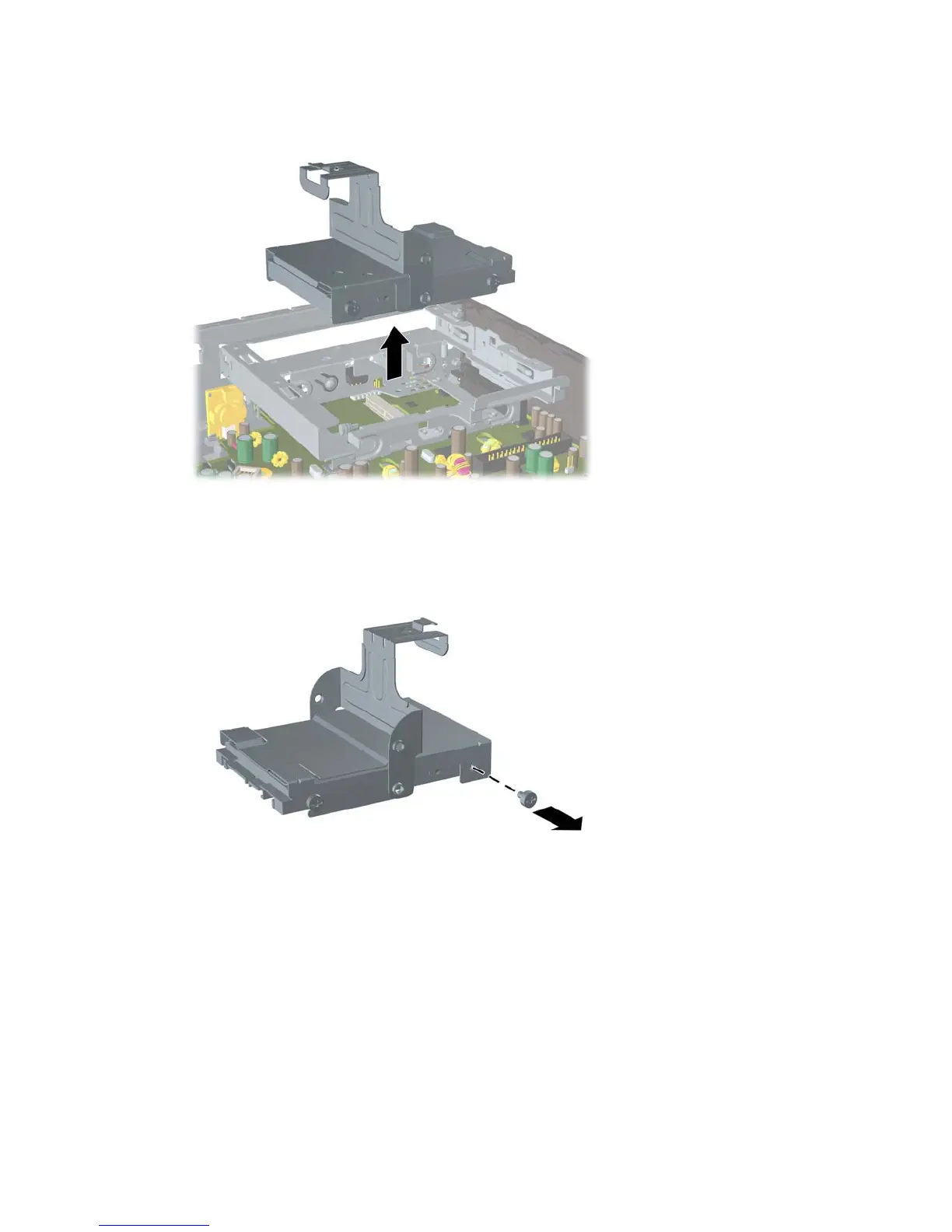

Figure 9-21 Removing the Hard Drive Carrier
6. To remove the hard drive from the carrier, remove the guide screw from the front left side of the
carrier.
Figure 9-22 Removing the Hard Drive Guide Screw
196 Chapter 9 Removal and Replacement Procedures Ultra-Slim Desktop (USDT) Chassis
