4. Press straight down on the two green thumb tabs inside the chassis (1) and rotate the expansion
card retention latch up (2).

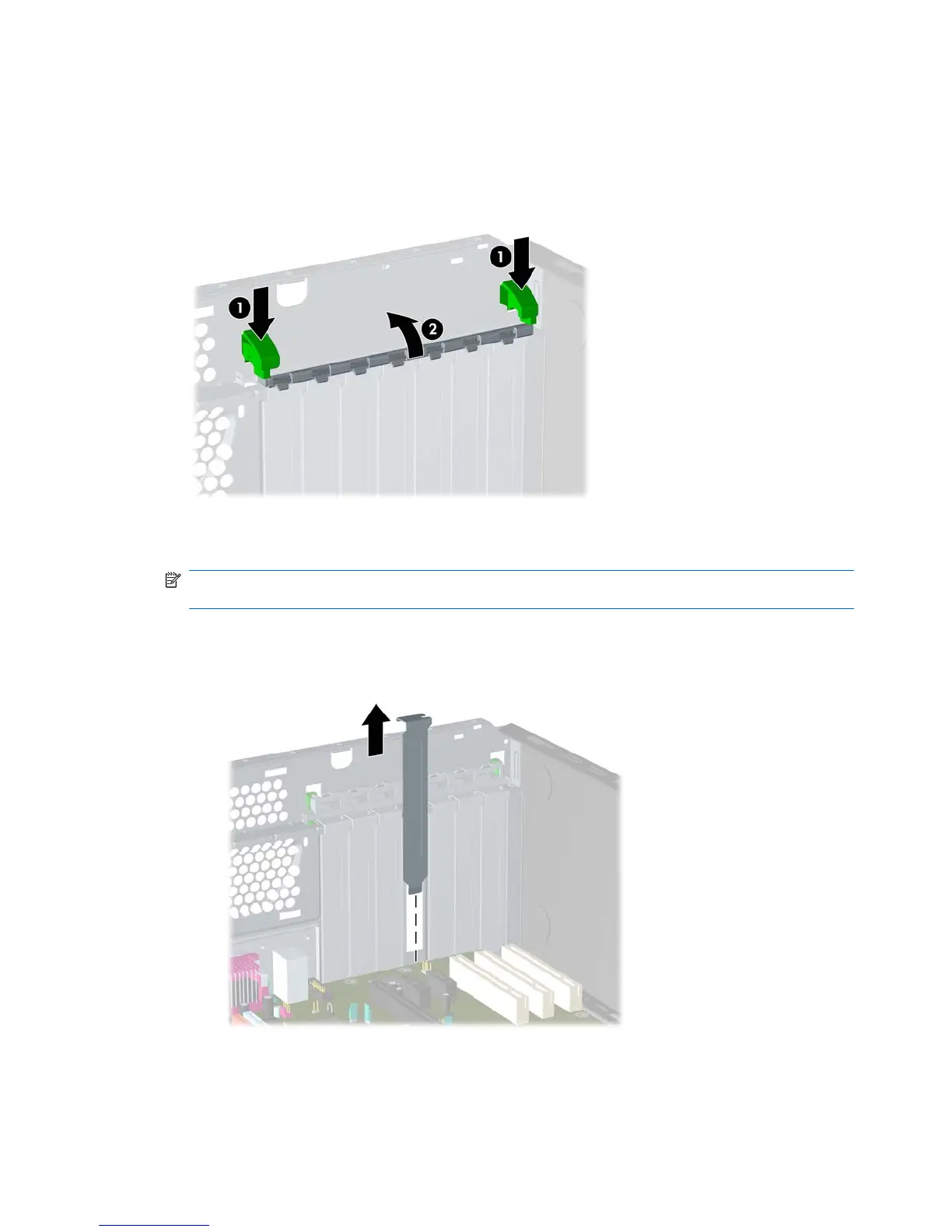

Figure 7-15 Opening the Expansion Slot Retainer
5. Before installing an expansion card, remove the expansion slot cover or the existing expansion
card.
NOTE: Before removing an installed expansion card, disconnect any cables that may be attached
to the expansion card.
a. If you are installing an expansion card in a vacant socket, remove the appropriate expansion
slot cover on the back of the chassis. Lift the expansion slot cover from the expansion slot.
Figure 7-16 Removing an Expansion Slot Cover
80 Chapter 7 Removal and Replacement Procedures Convertible Minitower (CMT) Chassis
