12 HP ProLiant DL360 Generation 4 Server Reference and Troubleshooting Guide

Item Description Status

7 UID button/LED Blue = Identification is activated.

Flashing blue = System is being managed

remotely.

Off = Identification is deactivated.

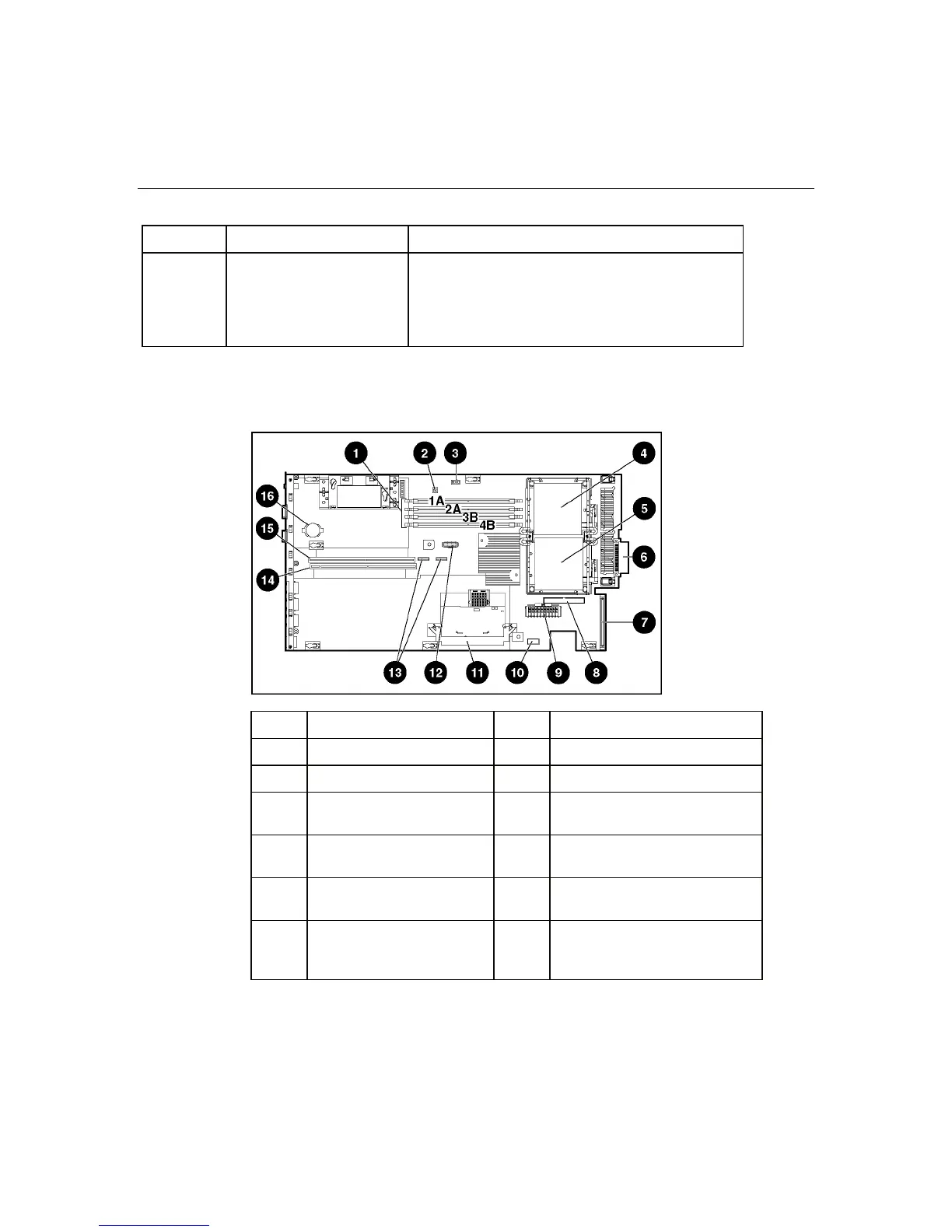

System Board Components

Item Description Item Description

1 DIMM slots (1-4) 9 Power supply connector

2 NMI switch 10 Power supply signal connector

3 System maintenance

switch (SW2)

11 Smart Array 6i memory

module connector*

4 Processor 1 socket 12 Remote management

connector

5 Processor 2 socket 13 SATA connectors (SATA

model only)

6 Processor zone fan

module connector

14 PCI riser board assembly

connector (for slot 2 riser

board)
