Hardware Options Installation 53

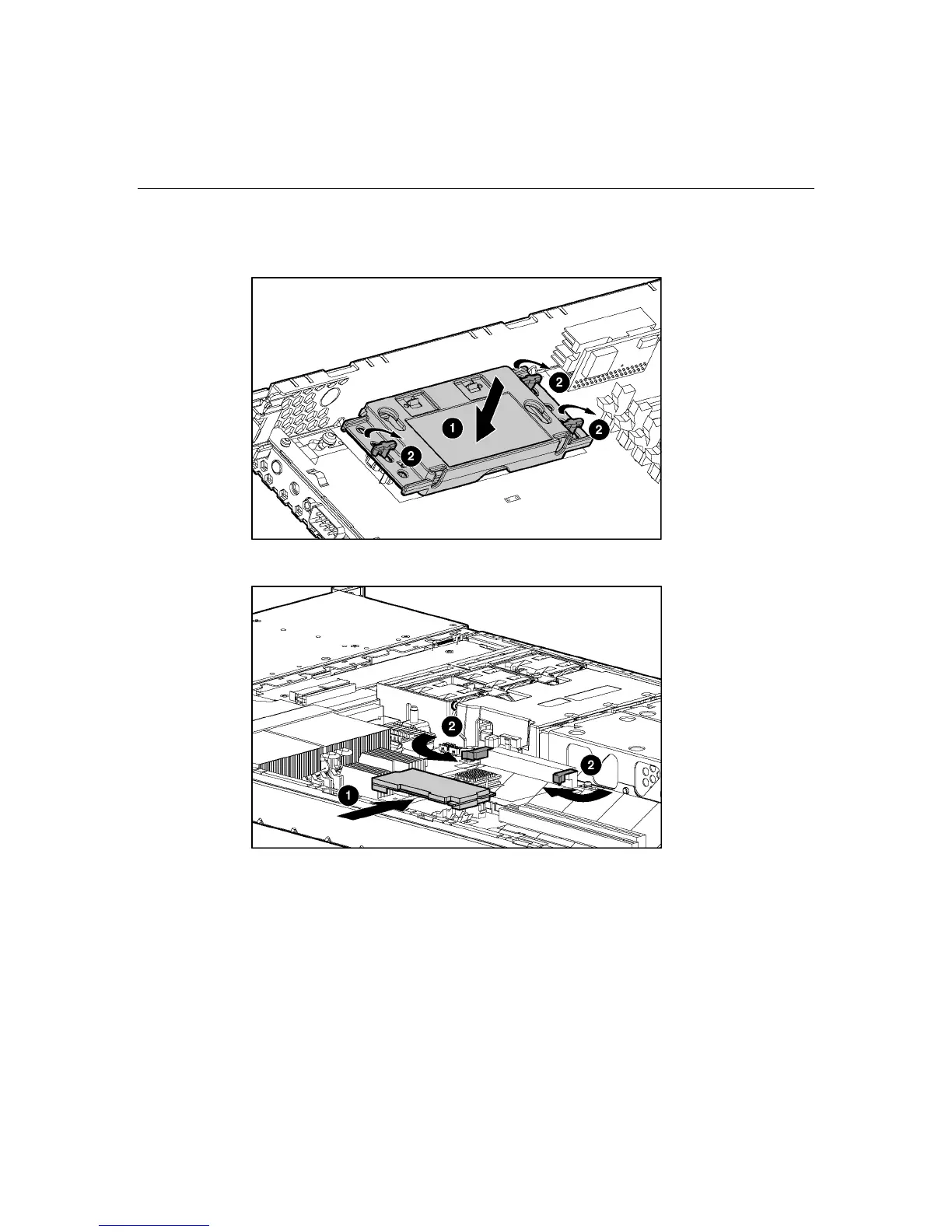

5. Install the battery module over the fasteners and turn the fasteners clockwise

to lock the module in place.

6. Install the Smart Array 6i memory module.

7. Route the battery module cable through the battery-backed write cache cable

clip on the system board.

NOTE: To manage internal cabling, wind the excess battery module

cable around the batteries.
