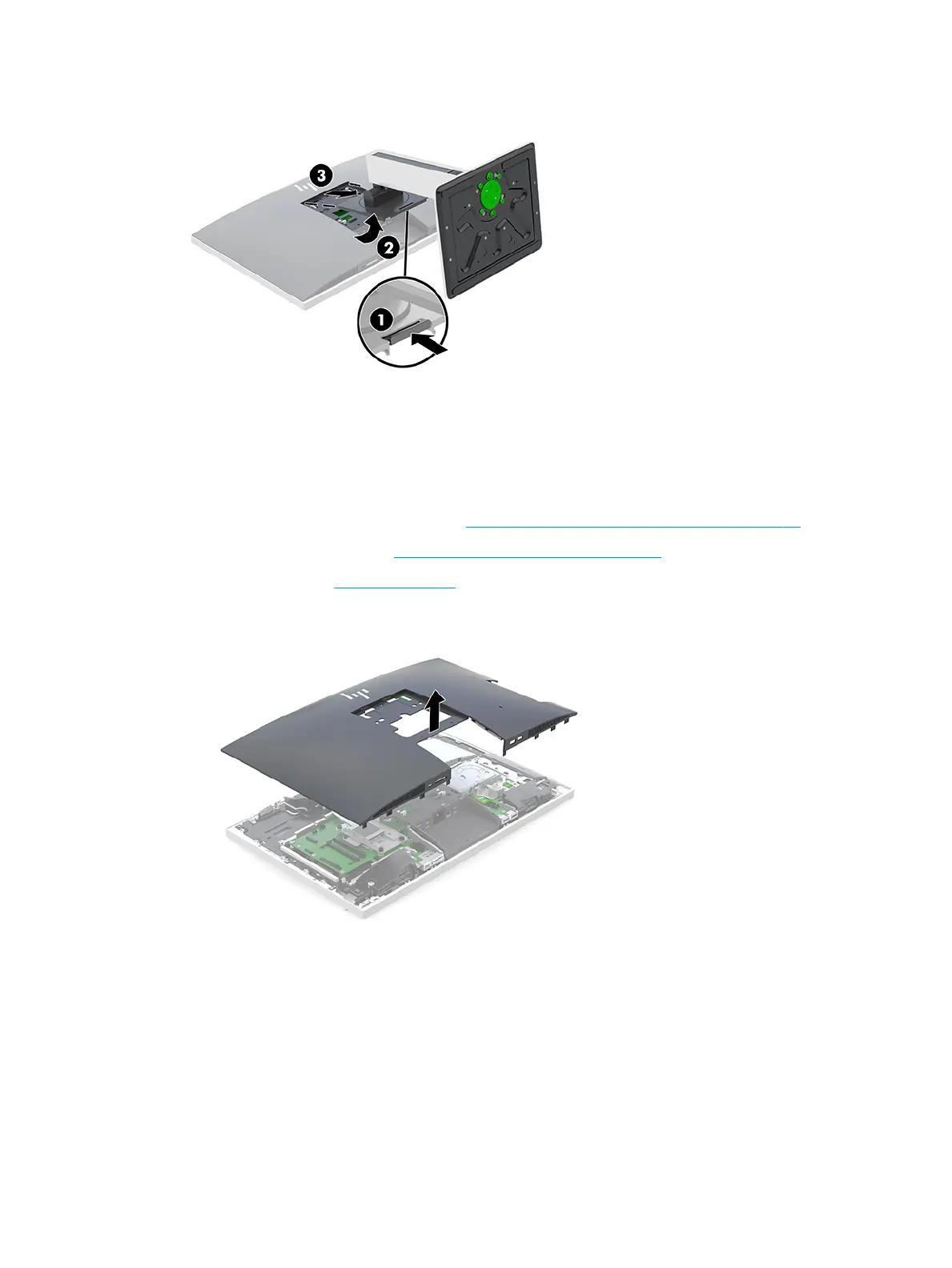

4. Lift the stand up (2), and then pull the stand hooks out of the computer (3).
Access panel
The computer has one main rear access panel that allows access to internal components.
To remove the access panel:
1. Prepare the computer for disassembly (see Preparing to disassemble the computer on page 18).
2. Remove the rear port cover (see Removing the rear port cover on page 18).
3. Remove the stand (see Stands on page 19).
4. Pull up the notches of the access panel, and then lift the access panel o the computer.
To replace the access panel, reverse the removal procedures.
20 Chapter 4 Removal and Replacement Procedures
