Speakers
IMPORTANT: Healthcare models and standard models use dierent speaker spare part kits.
The speakers are located at the bottom of the computer. Two separate speakers are each secured by two Torx
screws.
To remove the speakers:
1. Prepare the computer for disassembly (see Preparing to disassemble the computer on page 18).
2. Remove the rear port cover (see Removing the rear port cover on page 18).
3. Remove the stand (see Stands on page 19).
4. Remove the access panel (see Access panel on page 20).
5. Remove the rear I/O cover (see Rear I/O cover on page 42).

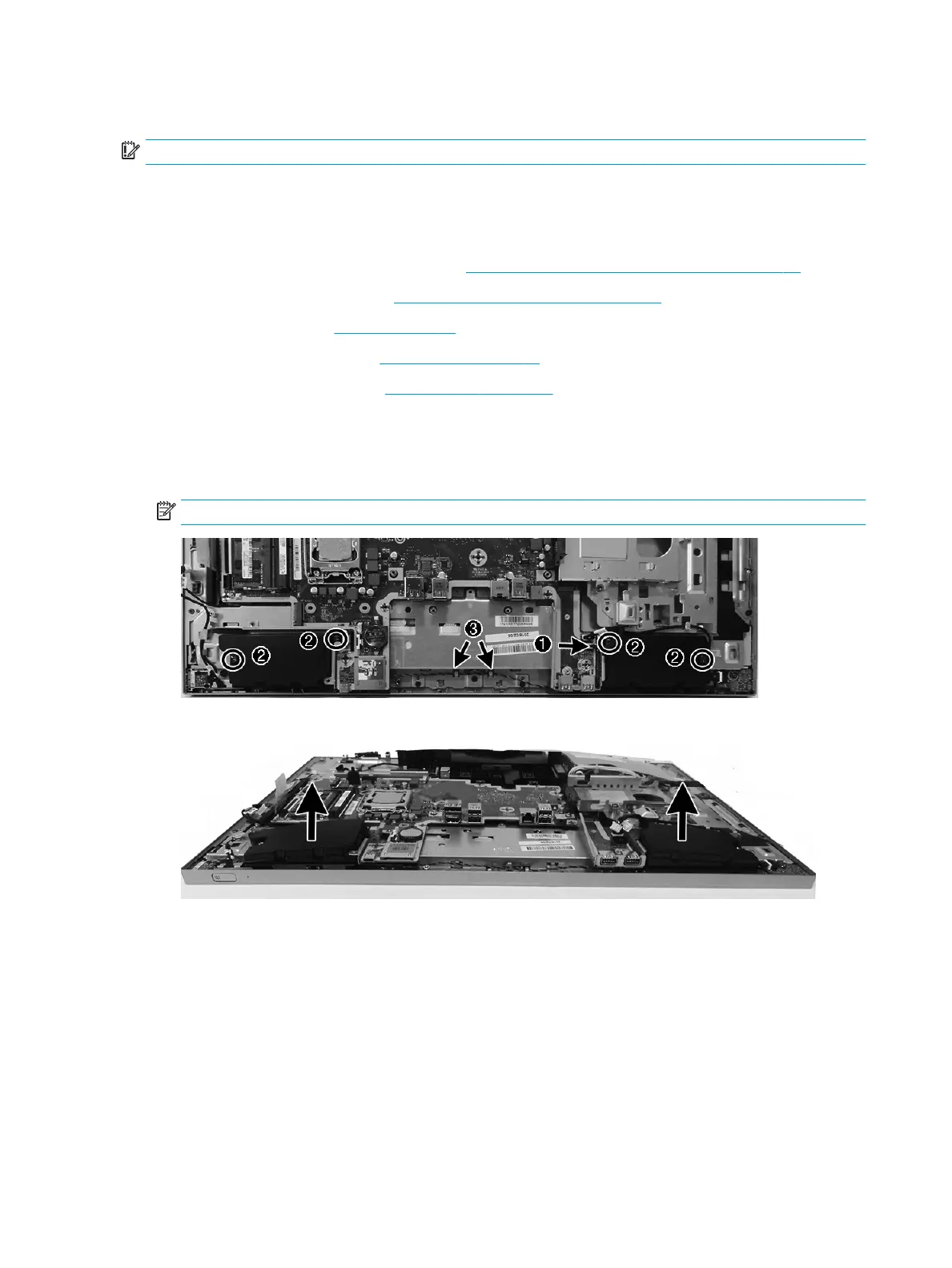

6. Disconnect the speaker cable from the system board (1).
7. Remove two Torx screws (2) that secure each speaker to the computer.
8. Remove speaker cable from the clips and routing path built into the chassis (3).
NOTE: Standard model shown.
9. Remove the speakers from the computer.
To install the speakers, reverse the removal procedures.
When installing the speakers, make sure the rubber grommets are correctly installed in the speakers.
