HP EliteOne 800 G4 - Locating Internal Components

128 pages

To Next Page

To Previous Page

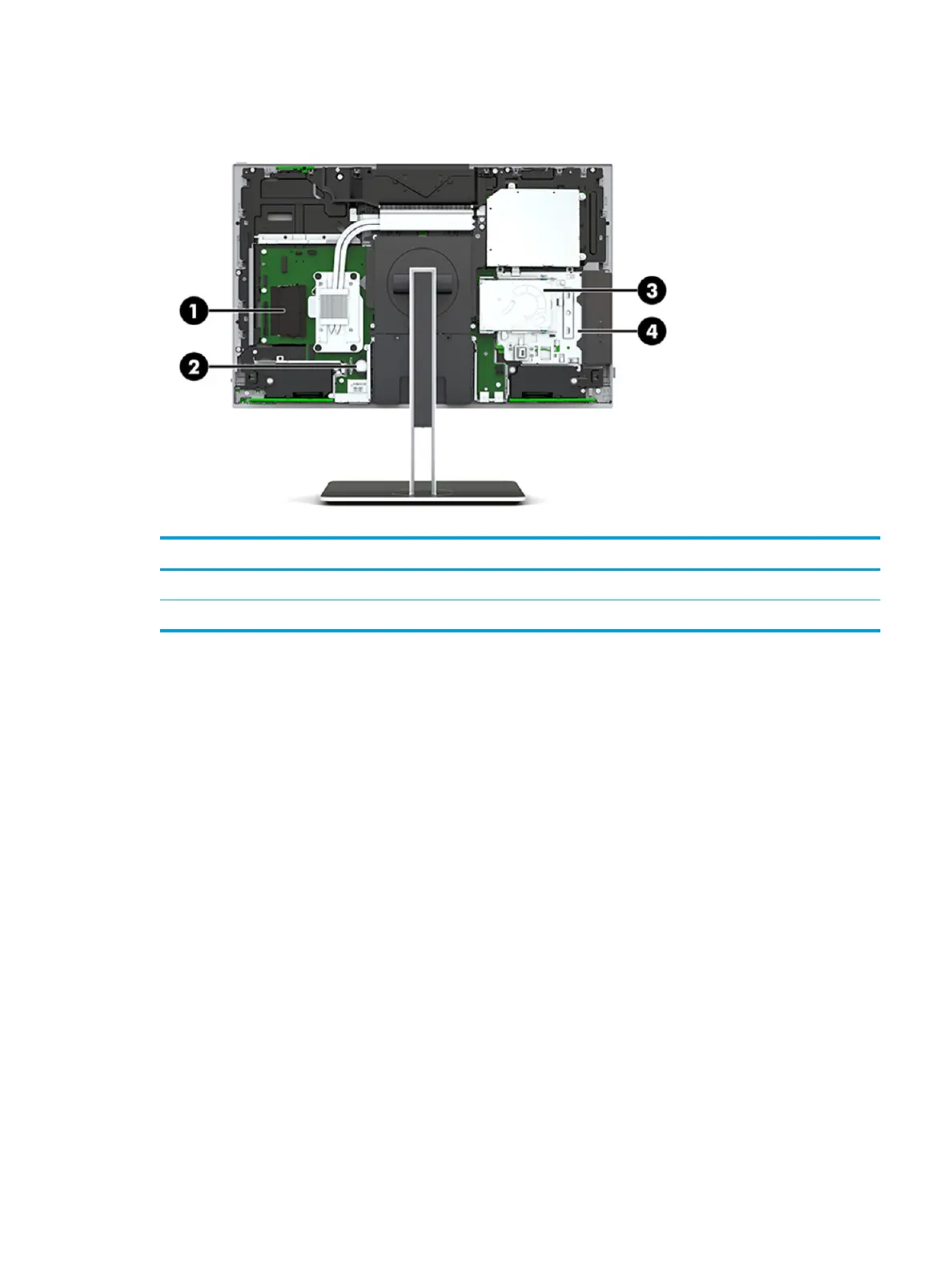

Locating internal components

Component Component

1 Memory modules 3 Hard drive

2 RTC battery 4 Optical disc drive (optional)

Locating internal components 21
