Audio board
The audio board is located on the bottom corner of the computer. It is secured with one Torx screw.
To remove the audio board:
1. Prepare the computer for disassembly (see Preparing to disassemble the computer on page 18).
2. Remove the access panel (see Access panel on page 20).
3. Remove the rear port cover (see Removing the rear port cover on page 18).
4. Remove the stand (see Stands on page 19).
5. Remove the access panel (see Access panel on page 20).

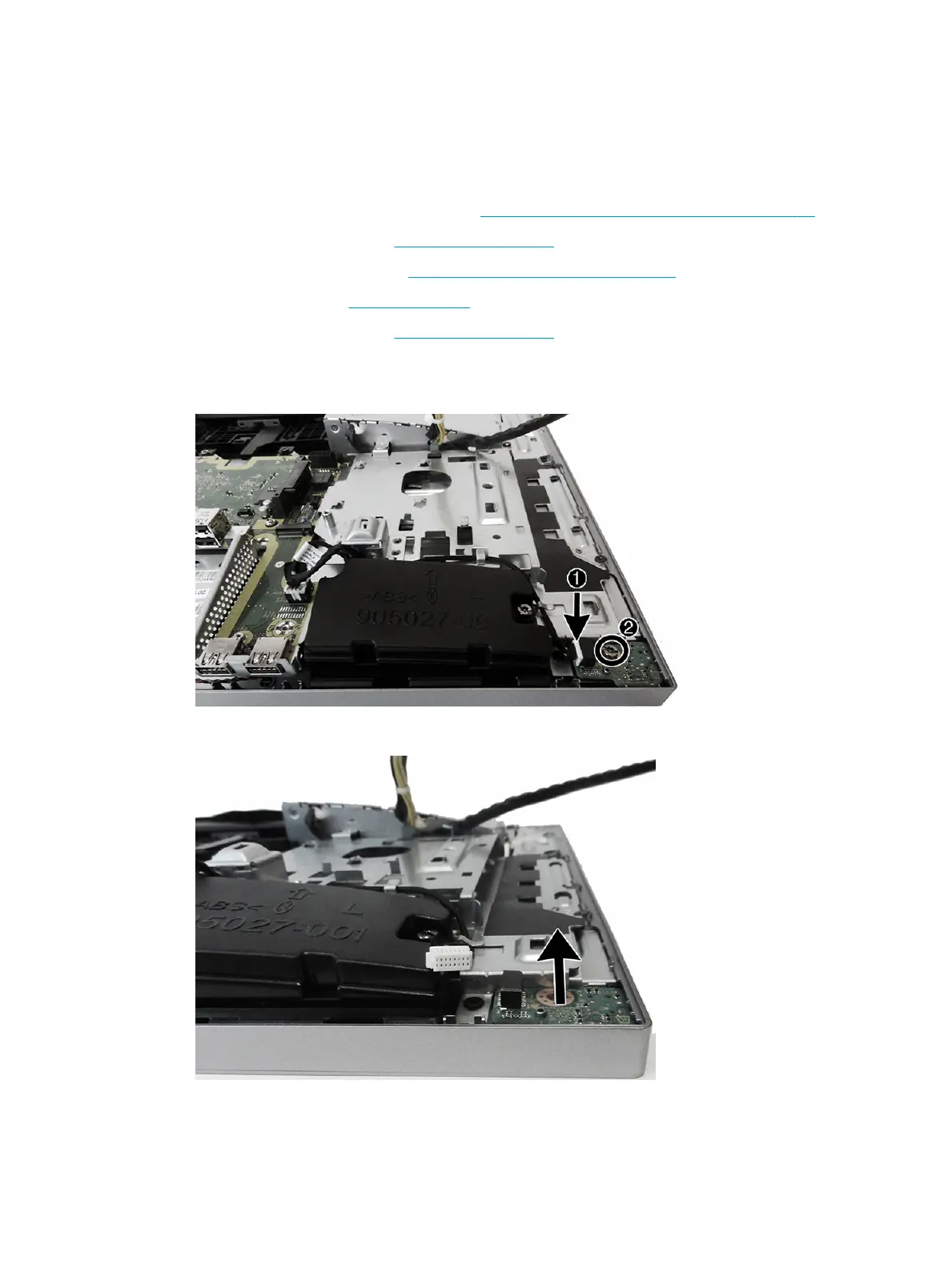

6. Disconnect the cable from the audio board (1)
7. Remove the Torx screw (2) that secures the audio board to the computer.
8. Lift the audio board out of the computer.
To replace the audio board, reverse the removal procedures.
Audio board 49
