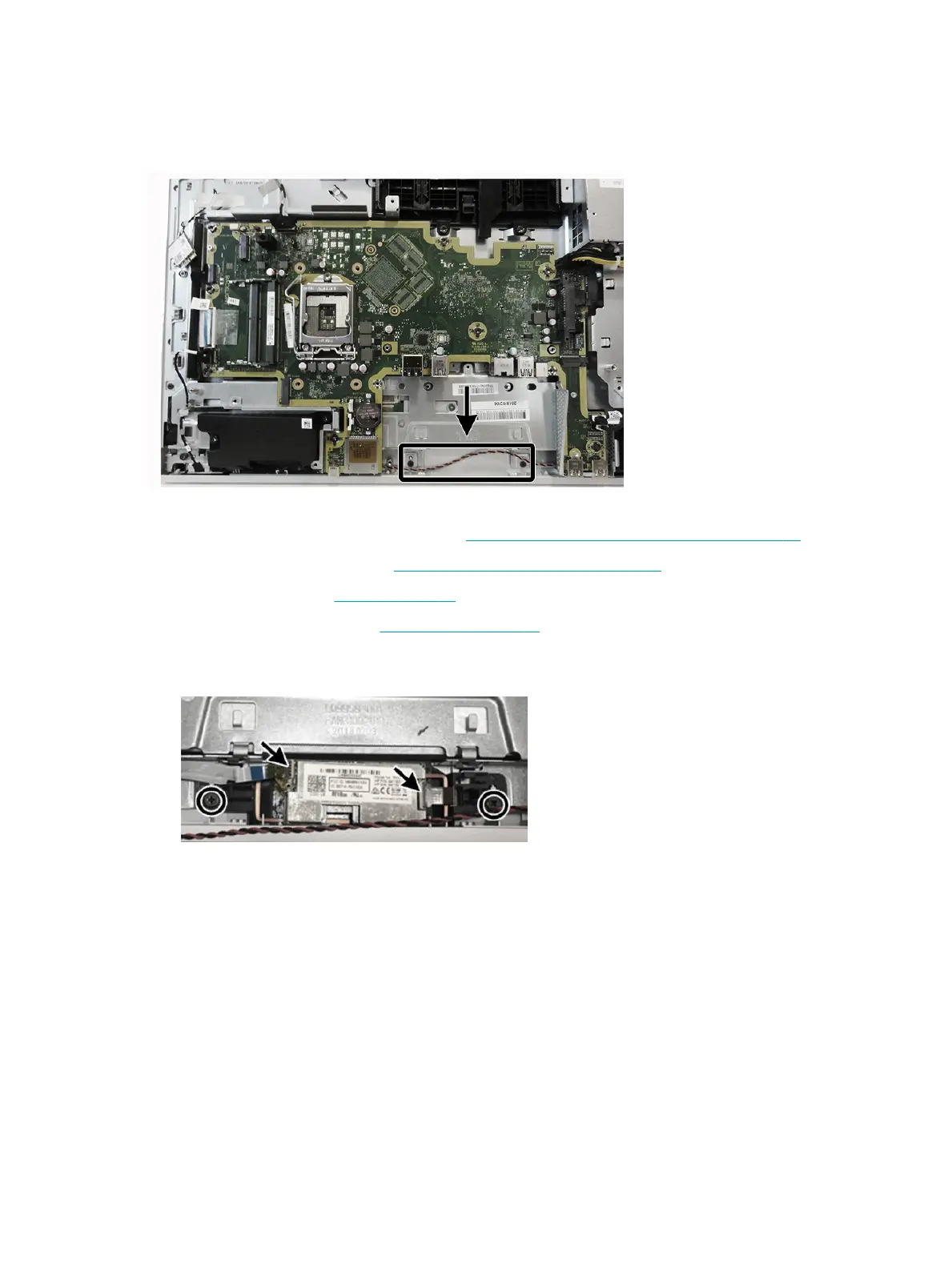

RFID board
An RFID board may be included with healthcare models. It is located near the bottom of the chassis.
To remove the RFID board:
1. Prepare the computer for disassembly (see Preparing to disassemble the computer on page 18).
2. Remove the rear port cover (see Removing the rear port cover on page 18).
3. Remove the stand (see Stands on page 19).
4. Remove the access panel (see Access panel on page 20).
5. Disconnect the cables from the board, remove the two Phillips screw that secure the board, and then
remove the board from the computer.
To install the RFID board, reverse the removal procedures.
32 Chapter 4 Removal and Replacement Procedures
