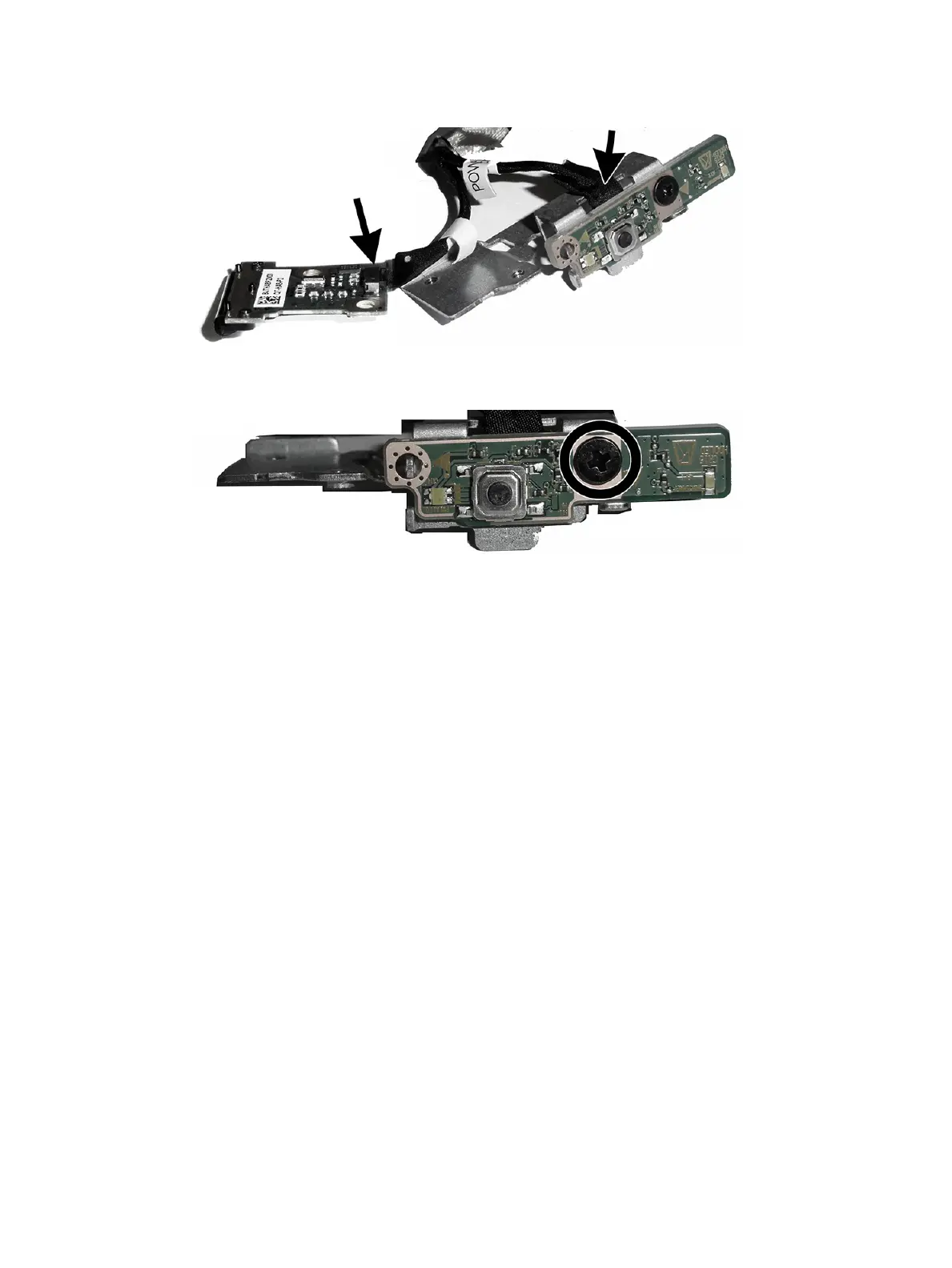

7. If necessary, disconnect the cables from each board.
8. If necessary, remove the Phillips screw that secures the power button board to the bracket, and then
remove the board from the bracket.
To install the power button and ngerprint reader boards, reverse the removal procedures.
Power button and ngerprint reader boards 31
