10. Remove the power supply from the computer.

To install the power supply, reverse the removal procedures.

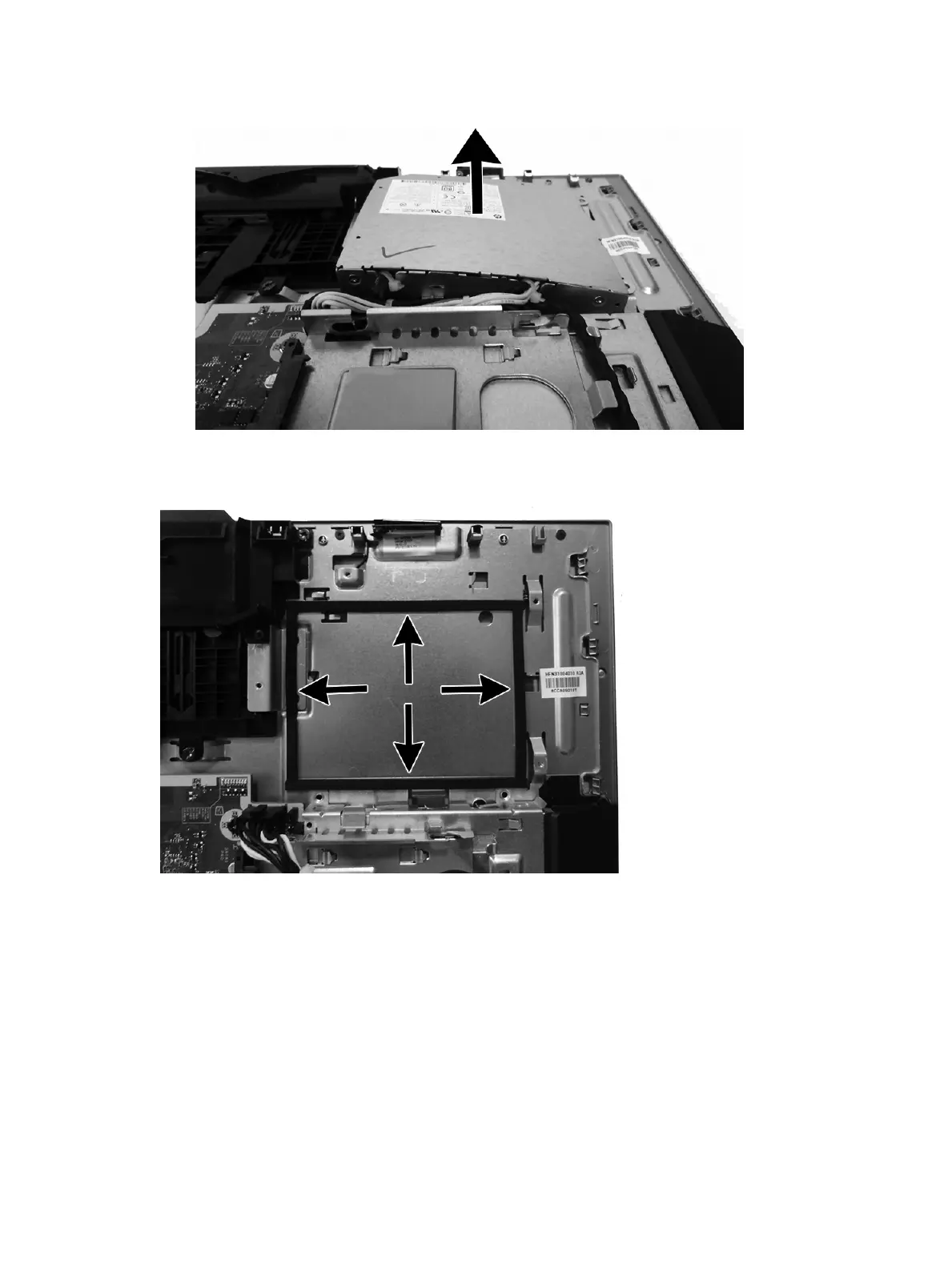

Make note of the foam strips that must be installed under the power supply, as shown in the following image.

Power supply 41
