Volume button board and cable
Description Spare part number
Volume button board (includes Mylar screw/POGO cover) L14760-001
Volume button board bracket (includes Mylar screw/POGO cover) L14761-001
Before removing the volume button board, follow these steps:
1. Shut down the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the tablet.
3. Disconnect the power from the tablet by rst unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the tablet.
4. Remove the display panel assembly (see Display assembly on page 32).
5. Remove the Mylar shield (see Mylar shield (WWAN models only) on page 37).
6. Disconnect the battery cable from the system board (see Battery on page 40).
Remove the volume button board:

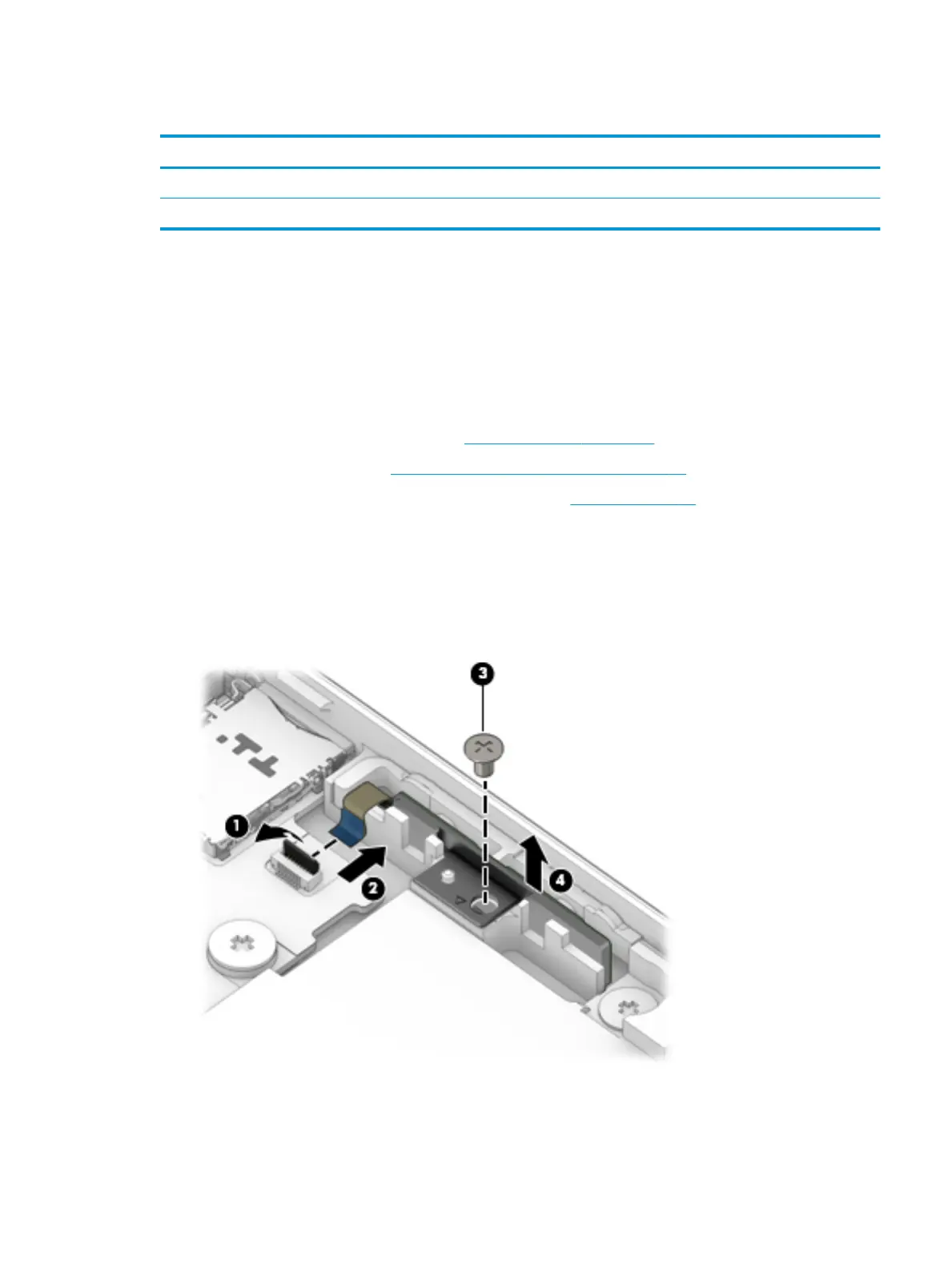

1. Release the ZIF connector (1) to which the volume button board cable is connected, and then disconnect
the volume button board cable from the system board (2).
2. Remove the Phillips PM2.0×2.0 screw (3) that secures the volume button board to the tablet.
3. Remove the volume button board (4).
Reverse this procedure to install the volume button board.
Component replacement procedures 51
