Power board and cable
Description Spare part number
Power board and cable (includes Mylar screw/POGO cover) L14759-001
Before removing the power board and cable, follow these steps:
1. Shut down the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the tablet.
3. Disconnect the power from the tablet by rst unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the tablet.
4. Remove the Mylar shield (see Mylar shield (WWAN models only) on page 37).
5. Remove the battery

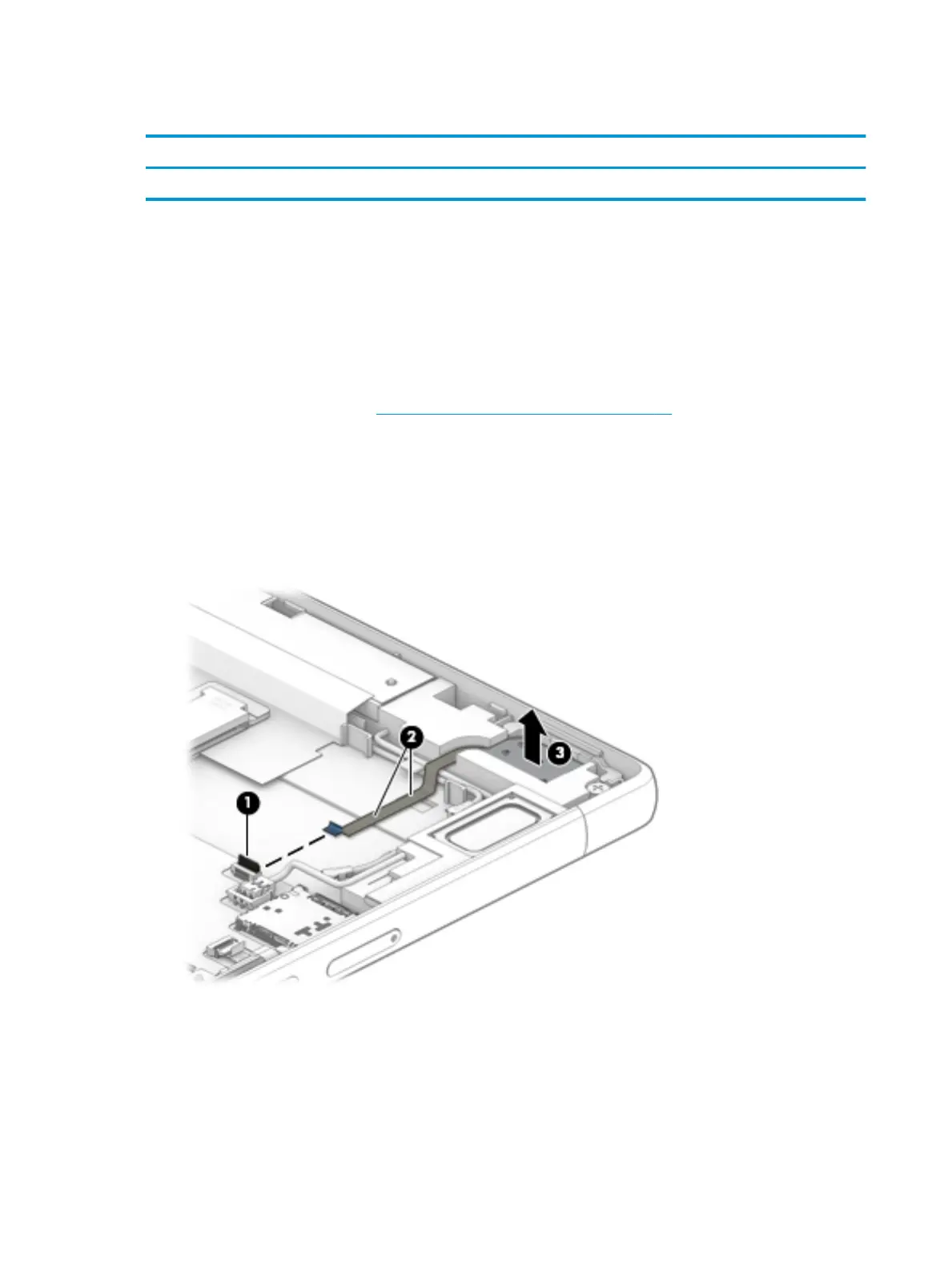

Remove the power board and cable:
1. Disconnect the power cable (1) from the system board.
2. Lift and peel the cable o the tablet (2). (The cable is attached to the tablet with adhesive.)
3. Lift the power board and cable assembly out of the tablet (3).
Reverse this procedure to install the power board and cable.
52 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
