POGO pin (keyboard) connector cable
Description Spare part number
POGO (keyboard) pin connector cable (includes Mylar screw/POGO cover, bottom thermal Mylar, side
thermal Mylar, and thermal grease)
L14776-001
Before removing the POGO pin connector cable, follow these steps:
1. Shut down the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the tablet.
3. Disconnect the power from the tablet by rst unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the tablet.
4. Remove the display panel assembly (see Display assembly on page 32).
5. Remove the Mylar shield (see Mylar shield (WWAN models only) on page 37).
6. Remove the battery (see Battery on page 40).
Remove the POGO pin connector cable:

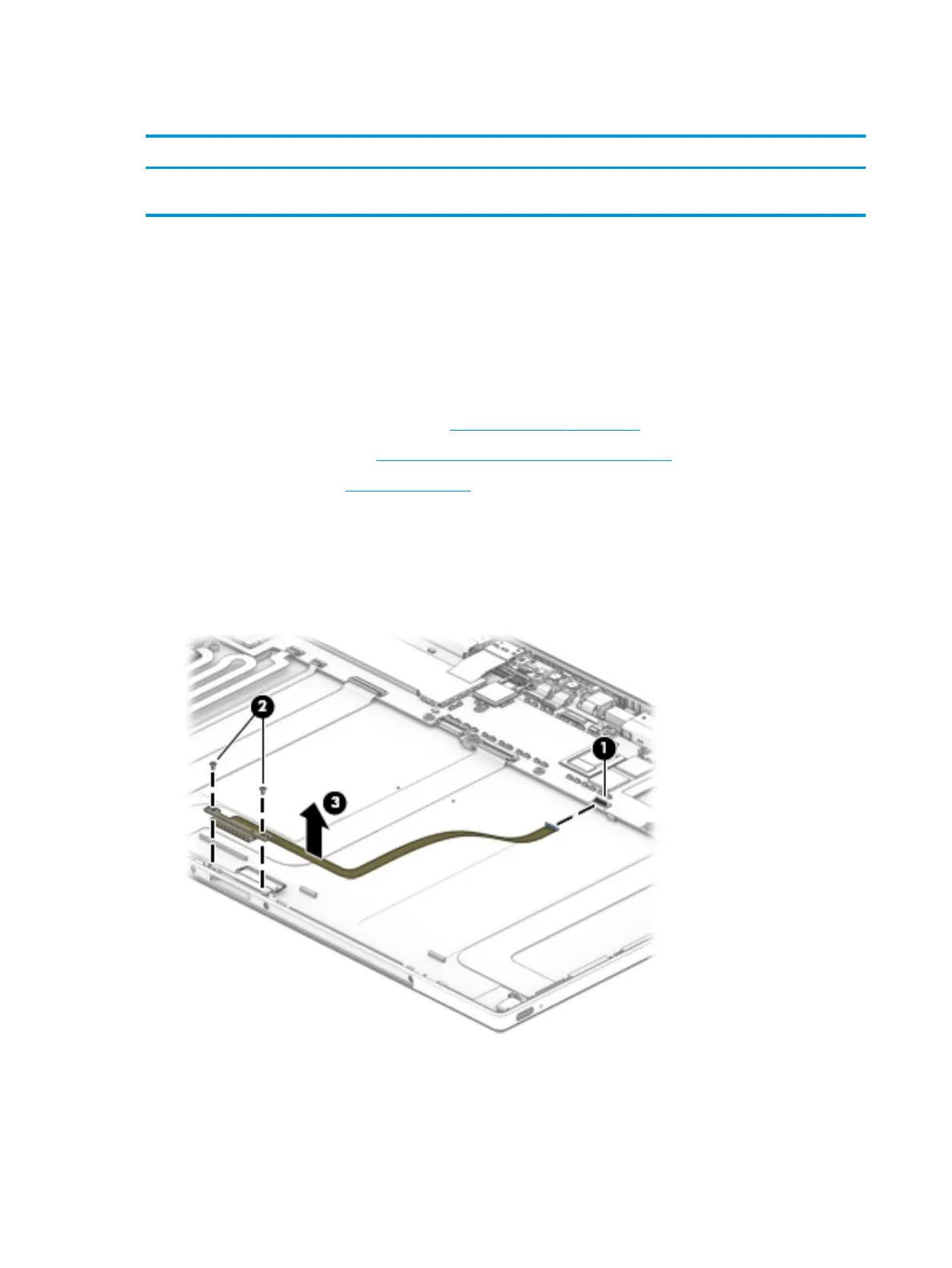

1. Disconnect the POGO pin connector cable from the system board (1).
2. Remove the two Phillips PM2.0×2.0 screws (2) that secure the POGO pin connector to the tablet.
3. Remove the POGO pin connector cable (3).
4. Remove the POGO pin connector cable.
Reverse this procedure to install the POGO pin connector cable.
60 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
