Setting Up the ACL Tape Drives
M8501 and M8502 ACL Tape Drive Installation and User’s Guide—529972-001
2-3
Setting up the M8501 ACL Rackmount Unit
6. Attach the slide members using the supplied fasteners. Install the clip nuts on the
inside of the slide member’s front and back mounting bracket only if the vertical rail
mounting holes are not tapped.

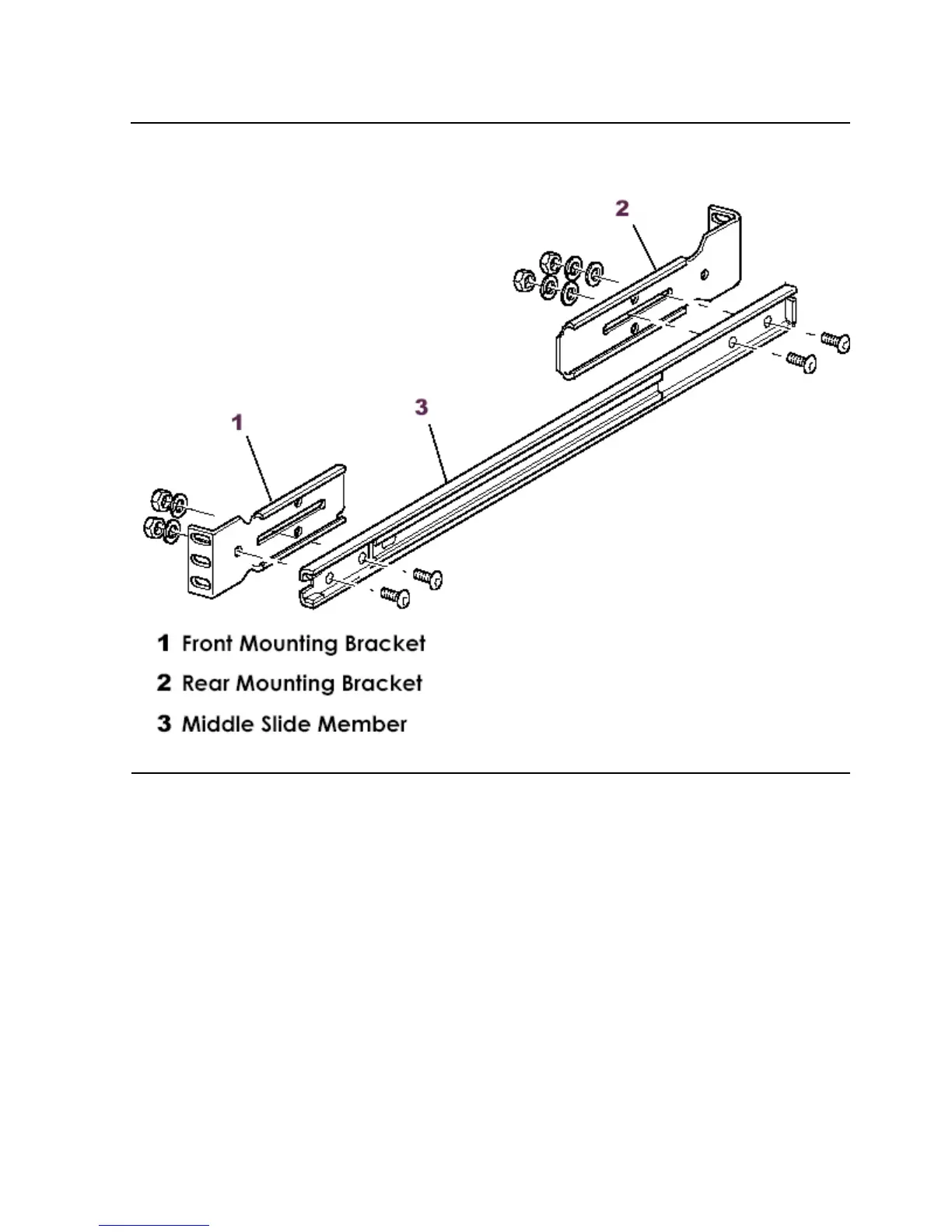

Figure 2-2. Installing the Slide Members
