HP M8501 User Manual

Operation
M8501 and M8502 ACL Tape Drive Installation and User’s Guide—529972-001
4-7
Move Media
These figures illustrate moving a cartridge from the tape drive to a slot in the
magazine:
1. Touch the Source input box or Source Element Type from the Move Media Screen.
The Source input box will change from gray to an active state, see Figure 4-8.
2. Touch the source you want to move, from the Source Element Type selections.
The options available are Drive and Slot.
3. Touch the Destination Input Box on the Move Media Screen. The Destination Input
Box will change from gray to an active state. See Figure 4-9.

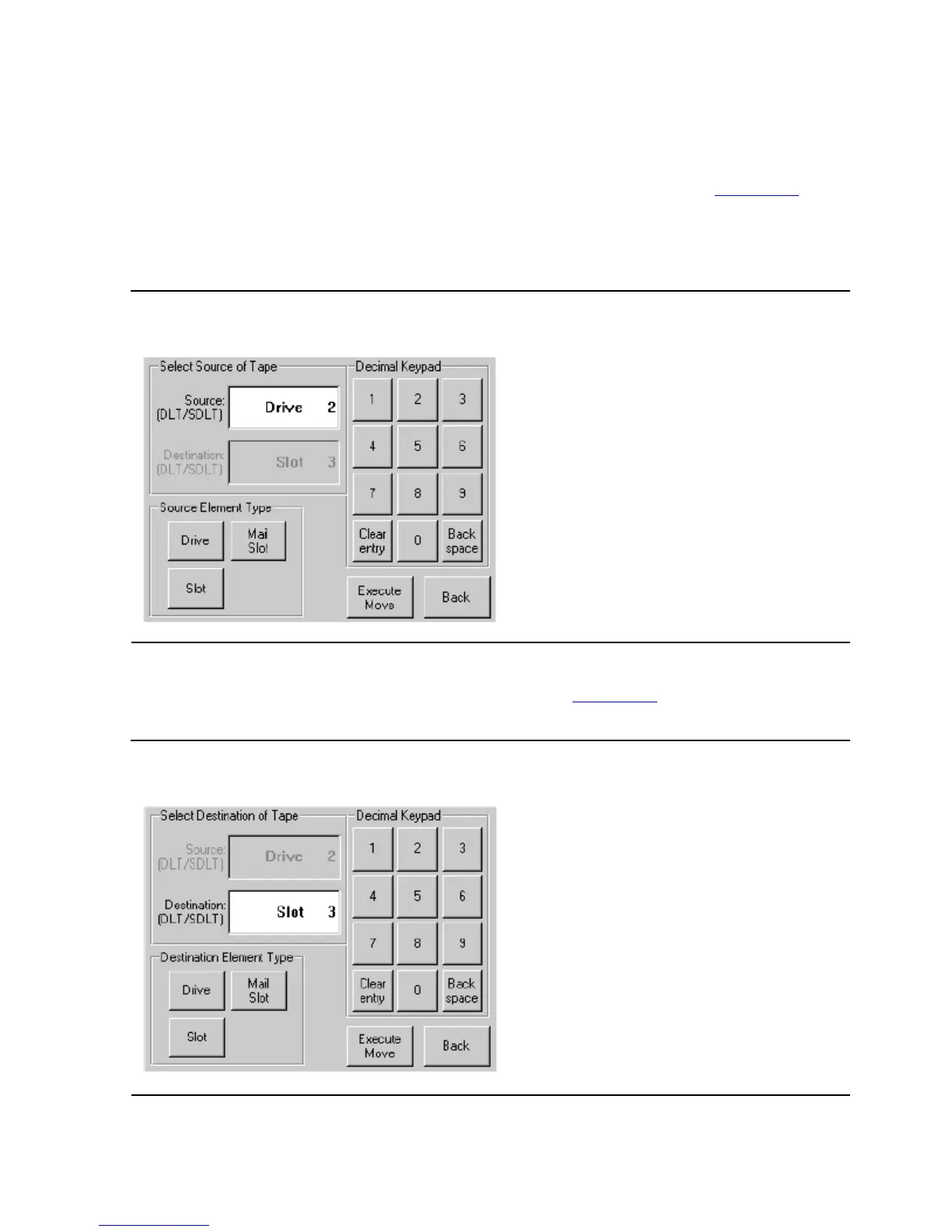

Figure 4-8. Move Media Screen (Source)
Figure 4-9. Move Media Screen (Destination)
