Installing and Configuring the ACL Tape Drive for the
NonStop NS-Series Server
M8501 and M8502 ACL Tape Drive Installation and User’s Guide—529972-001
3-5
Installation
3. Attach the power cord to the ACL tape drive’s AC power receptacle (see
Figure 3-5) and then plug the other end into an AC power outlet.
4. Toggle the power switch to the on position from the rear of the unit.
5. Press anywhere on the GUI touch screen to activate the display, and then turn the
unit on.

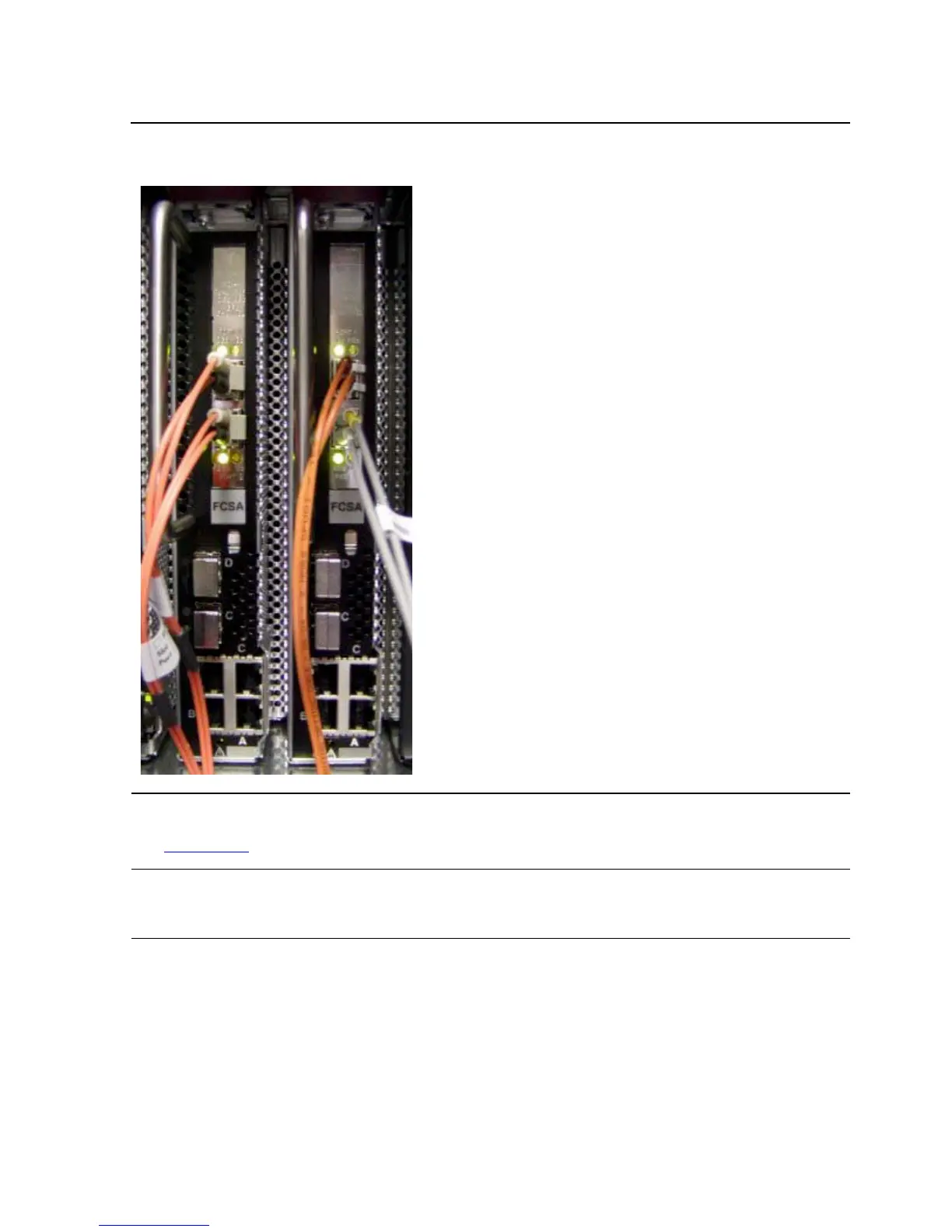

Figure 3-4. View of Two FCSAs at the Rear of the Server
Note. The tape drive does not have protection against lightning surges. Customers in high-risk
areas should use external surge protection rated for use in their location and be able to handle
the power demand of the tape drive.
