Setting Up the ACL Tape Drives
M8501 and M8502 ACL Tape Drive Installation and User’s Guide—529972-001
2-5
Setting up the M8502 ACL Tabletop
14. Attach the unit to the rack using two 10-32 captive thumbscrews that are located
on the lower left and right front panel.
15. Fully tighten the rear-mounting bracket screws.
Setting up the M8502 ACL Tabletop
The M8502 ACL tabletop requires no mechanical assembly for mounting (see
Figure 2-4). Place the unit on a desk, table, or other stable horizontal surface. Ensure
that the cooling grills at the front and the fans at the rear of the unit are not obstructed.
Allow 12 inches (30.4 centimeters) of clearance at the front and 6 inches (15.2
centimeters) at the rear of the unit to allow for adequate cooling.

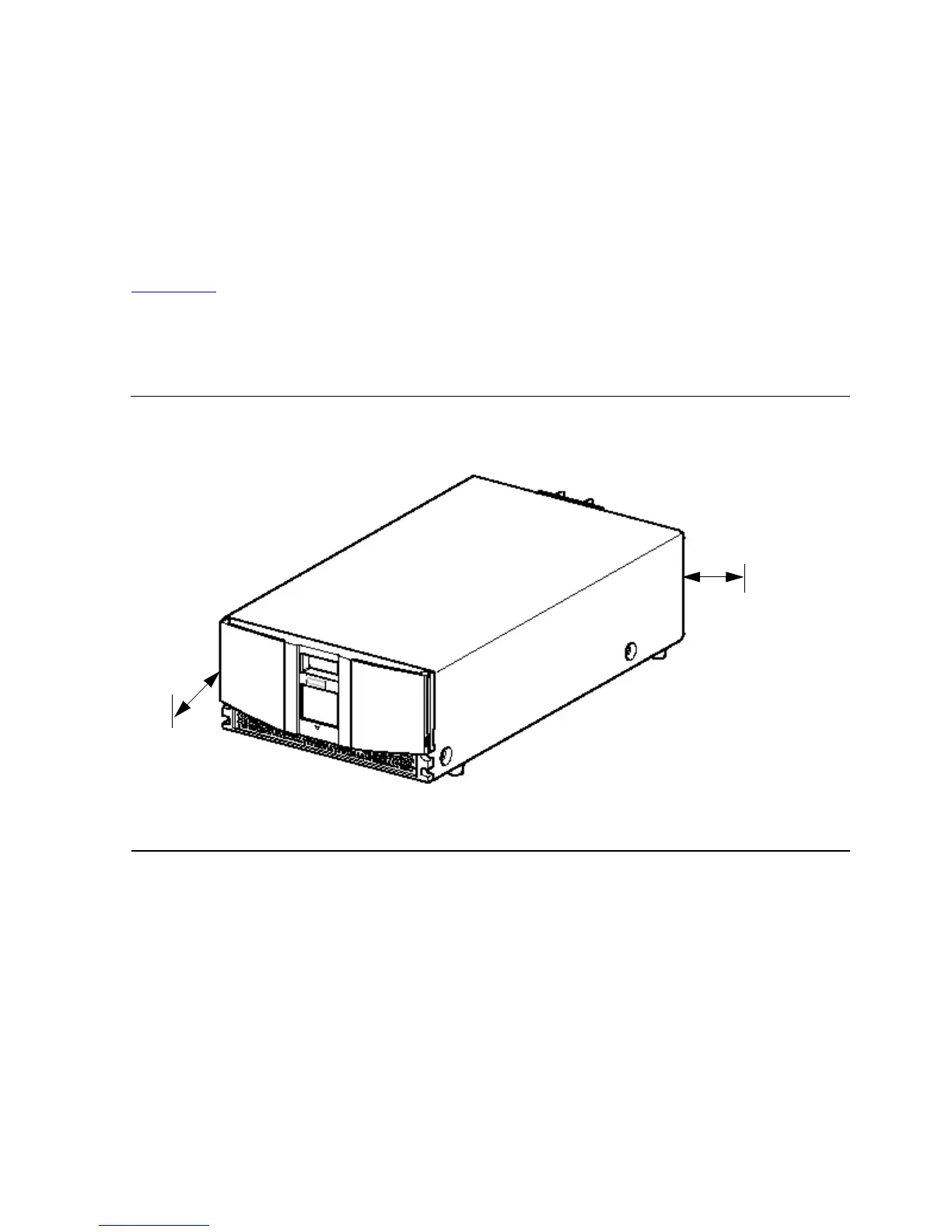

Figure 2-4. Tabletop Model Clearances
6 inches
(15.2
12 inches
(30.4
centi-
meters)
centi-
meters)
