Operation
M8501 and M8502 ACL Tape Drive Installation and User’s Guide—529972-001
4-4
ACL Default Screen
ACL Default Screen
After the POST executes successfully and the ACL initialization completes, the ACL
tape drive Default Screen appears as shown in Figure 4-4.
The ACL Default screen enables you to select these options:
•
Technical Support Information (HP Logo)
•
Magazine Access
•
Move Media
•
LCD Contrast Controls
•
Power
•
Status Online
•
Menu
Display Screens and Options
The ACL GUI touch screen displays graphics and text in the form of easy to
understand messages. Graphics and text messages, along with their functions, are
described in this section.

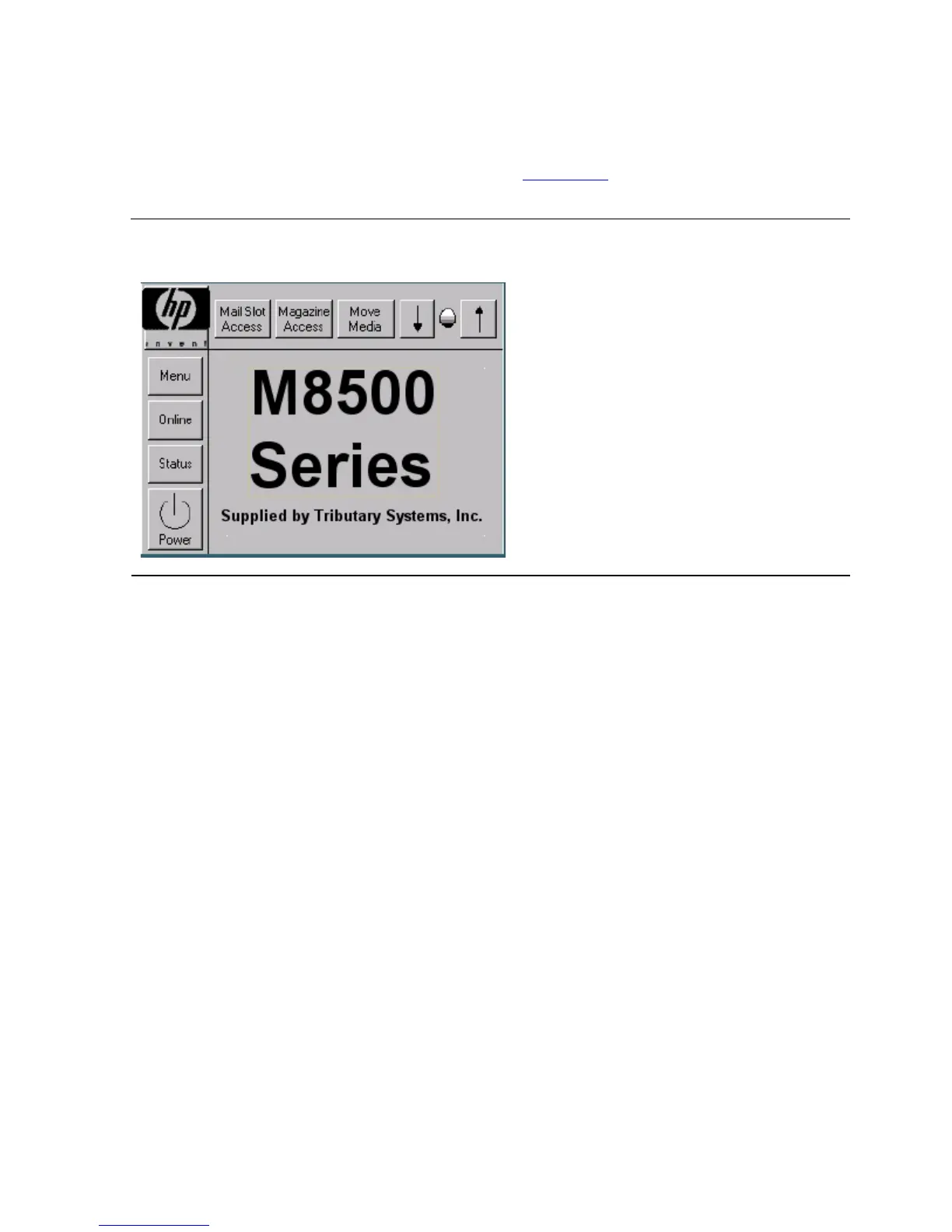

Figure 4-4. ACL Default Screen
