Operation
M8501 and M8502 ACL Tape Drive Installation and User’s Guide—529972-001
4-8
LCD Contrast Controls
4. Touch the destination option that you want to move media to. From the Destination
Element Type selections. The options available are Drive and Slot. Repeat
selecting the desired destination option until the desired option is displayed in the
Destination Input Box, for example, touching Slot three times displays Slot 3 in the
Destination Input Box.
5. Touch the “Execute Move” button. The ACL robotics move the cartridge from the
Drive to Slot 3.
LCD Contrast Controls
Selecting these options let you increase or decrease the contrast of the LCD display.
Incremental steps are set by adjusting the LCD contrast controls (up and down arrows)
from the upper right corner of the ACL Default Screen. Incremental steps can range
from 0 to 31 depending on your preference.
Power
Selecting this option initiates an ACL power-down operation.
Note. The ACL moves the shuttle assembly to the parked position before powering down.

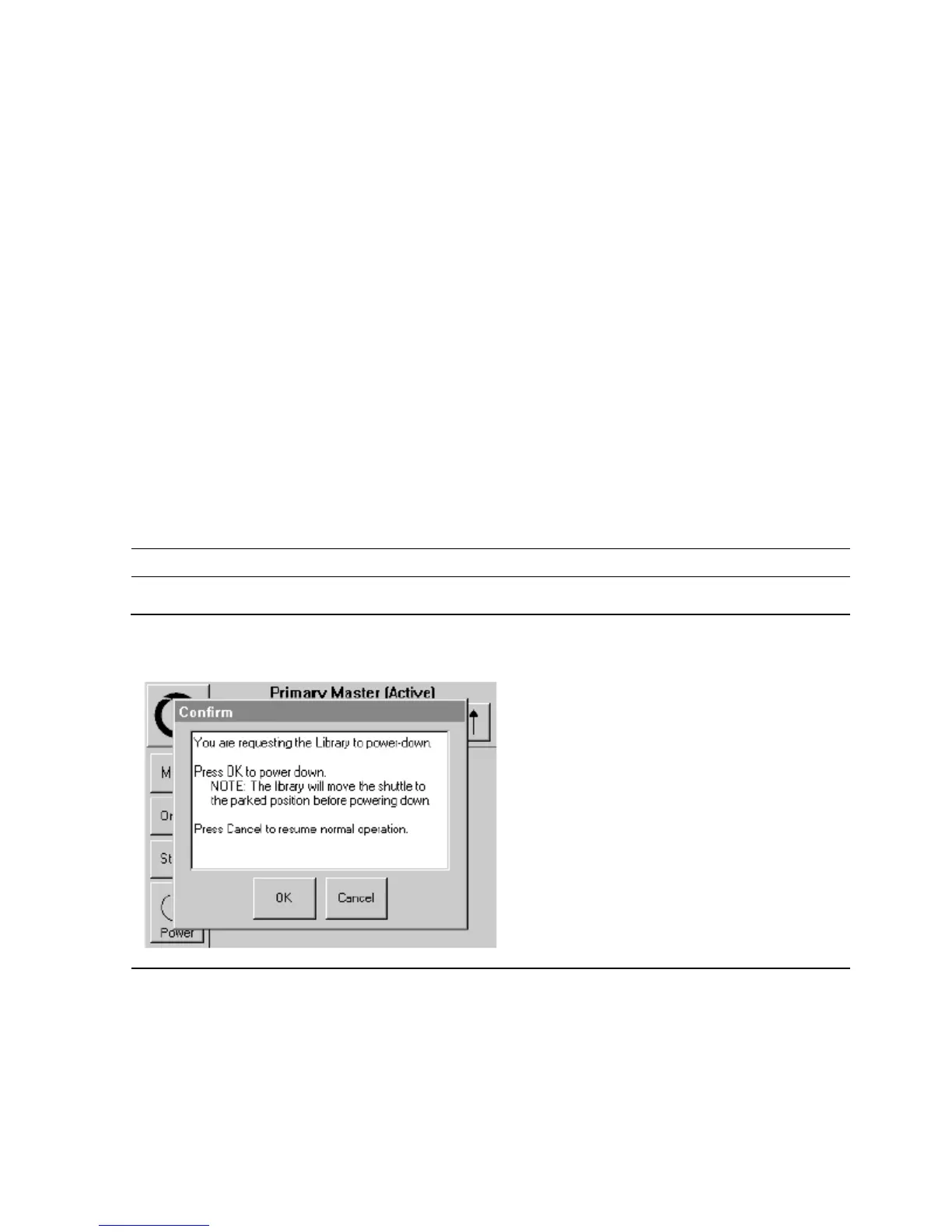

Figure 4-10. Power Down Initiation Screen
