Installing Accessories
Installing PC Devices
1-57

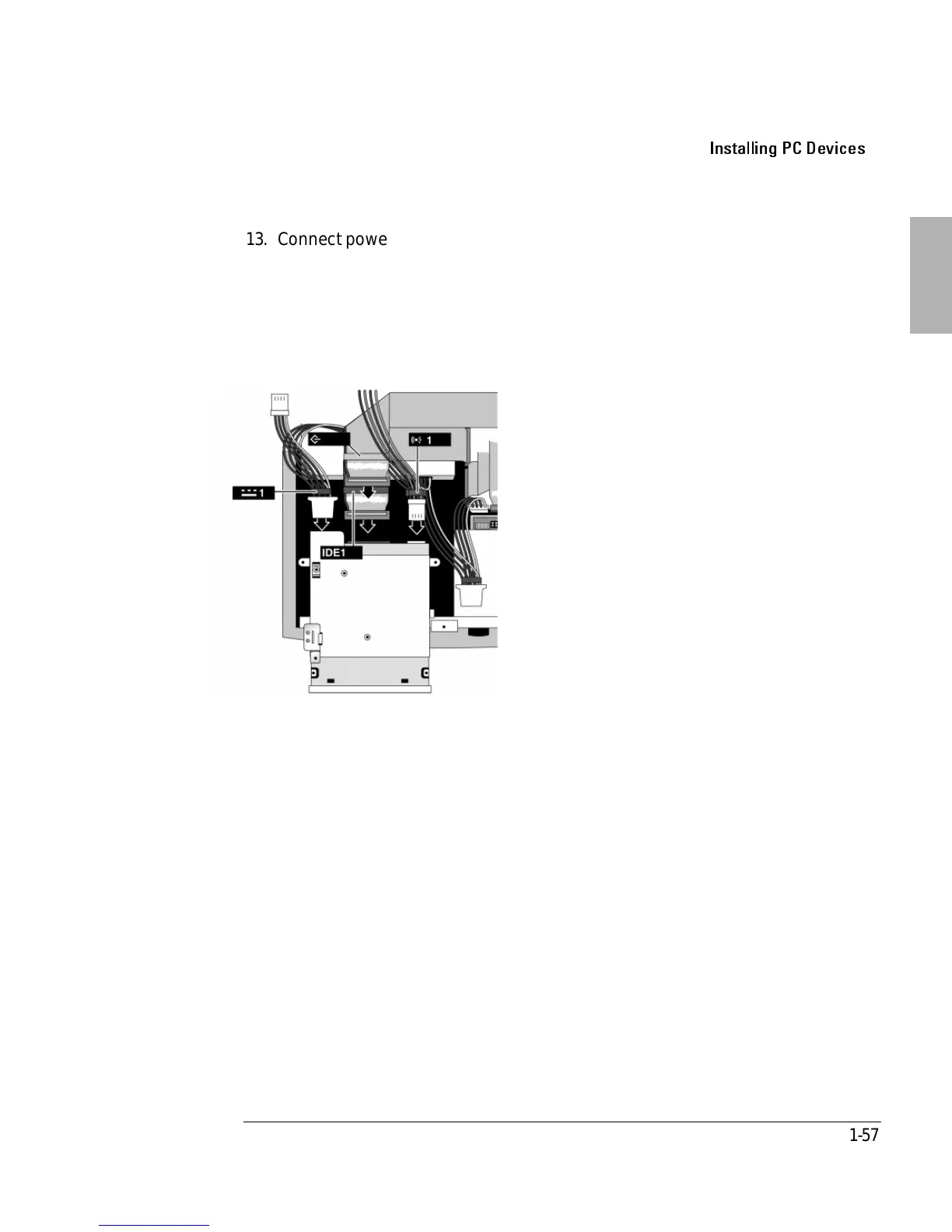

13. Connect power cable 1 to the device, then connect either IDE cable 1 or the
SCSI cable, depending on the type of module. The cables are labeled for easy
identification.
Connect audio cable 1 to the module (if needed). Both the power cable and
audio and power cables have two connectors. Select the connectors that
matches your PC device.
14. Insert the module slightly through the opening in the front of the dock (from
inside the dock) and lay it flat in the dock, then slide the unit back until the tabs
on the housing are secured by the retainer on the bottom of the dock and the
screw holes are properly aligned.
