Hardware options installation 55
b.

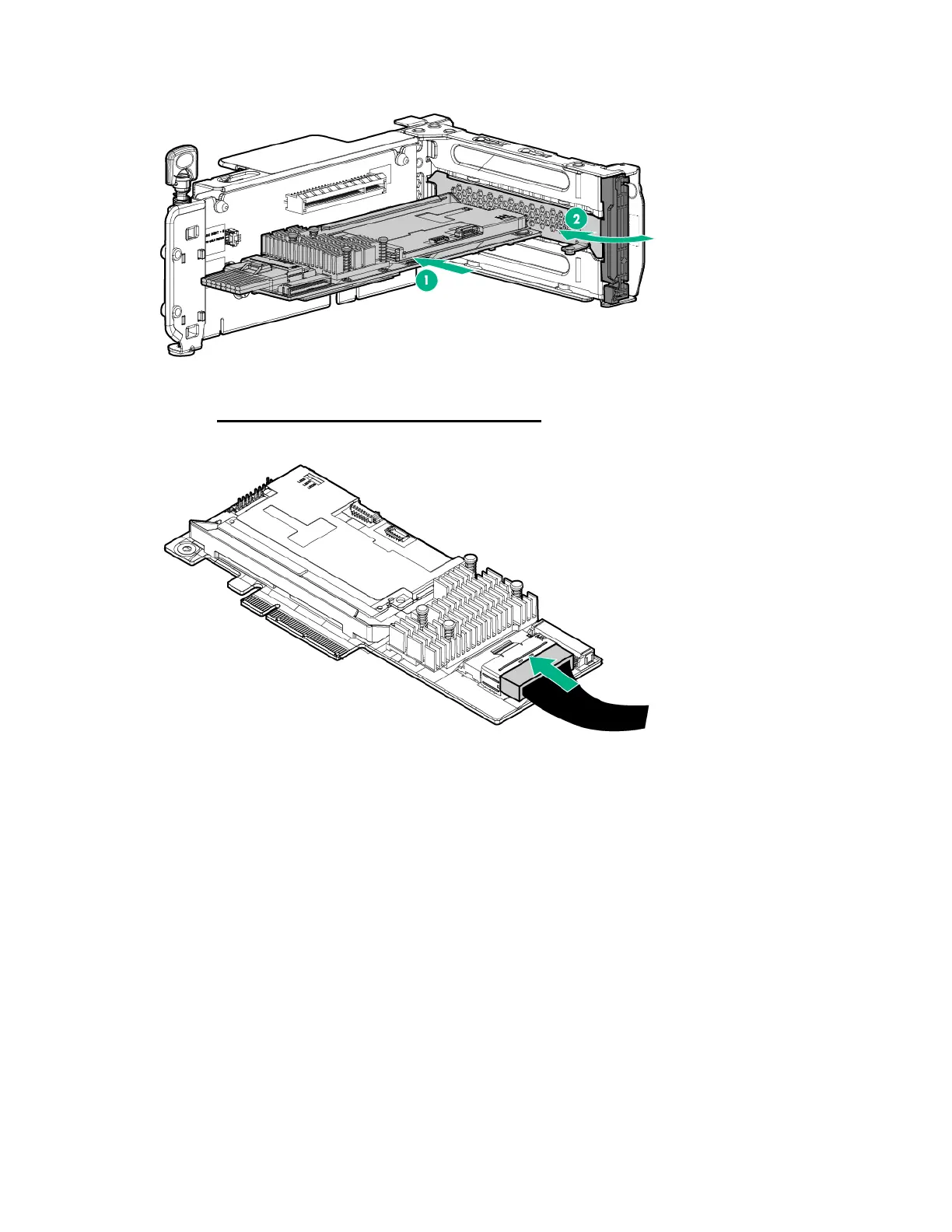

Install the storage controller. Verify that the board is firmly seated in the slot.
For more information about the integrated storage controller and its features, select the relevant
user documentation on the Hewlett Packard Enterprise website
(http://www.hpe.com/info/smartstorage/docs).
c. Connect the Mini-SAS cable to the storage controller.
d. Install the air baffle (on page 29).
e. Install the primary PCI riser cage ("Install the PCI riser cages" on page 27).
f. Route the Mini-SAS cable along the side of the system board towards the front chassis, and then
connect the cable to the drive backplane.
