Setup and Installation of the Packaged Cluster

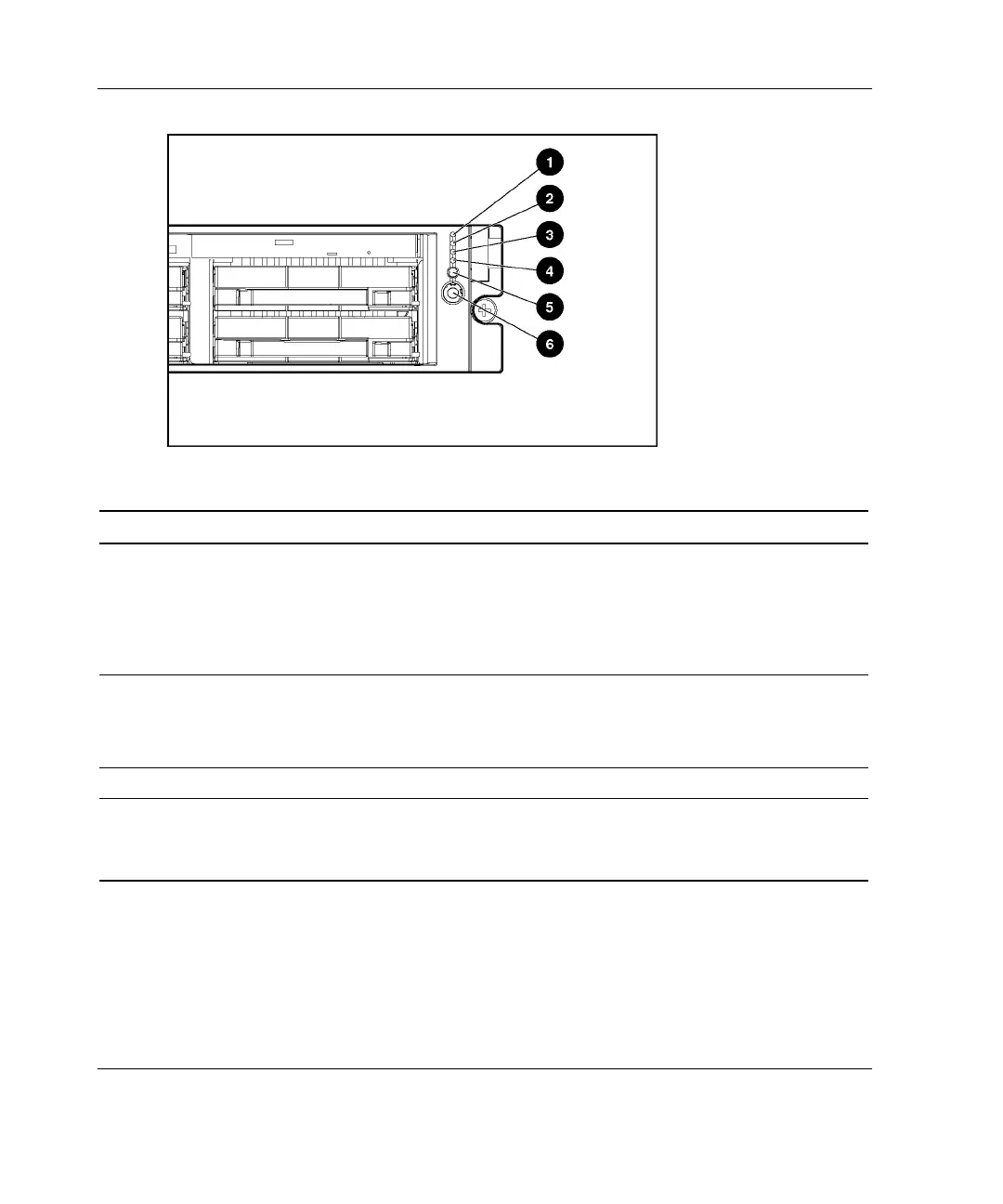

Table 2-2: Front Panel LEDs and Buttons
Item Description Status
1 Internal health LED Green = Normal
Amber = System degraded. Refer to system board LEDs to
identify component in degraded state
Red = System critical. Refer to system board LEDs to identify
component in critical state
2 External health LED
(power supply)
Green = Normal
Amber = Power redundancy failure
Red = Critical power supply failure
3 NIC 1 link/activity LED Green = Network link
4 NIC 2 link/activity LED Flashing = Network link and activity
Off = No link to network. If power is off, view the rear panel
RJ-45 LEDs for status
continued
2-4 HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
