Table 2-2: Front Panel LEDs and Buttons

continued

Item Description Status

5 UID LED button Blue = Activated

Flashing = System remotely managed

Off = Deactivated

6 Power On/Standby

button/system power

LED

Green = System on

Amber = System shut down, but power still applied

Off = Power cord not attached or power supply failure

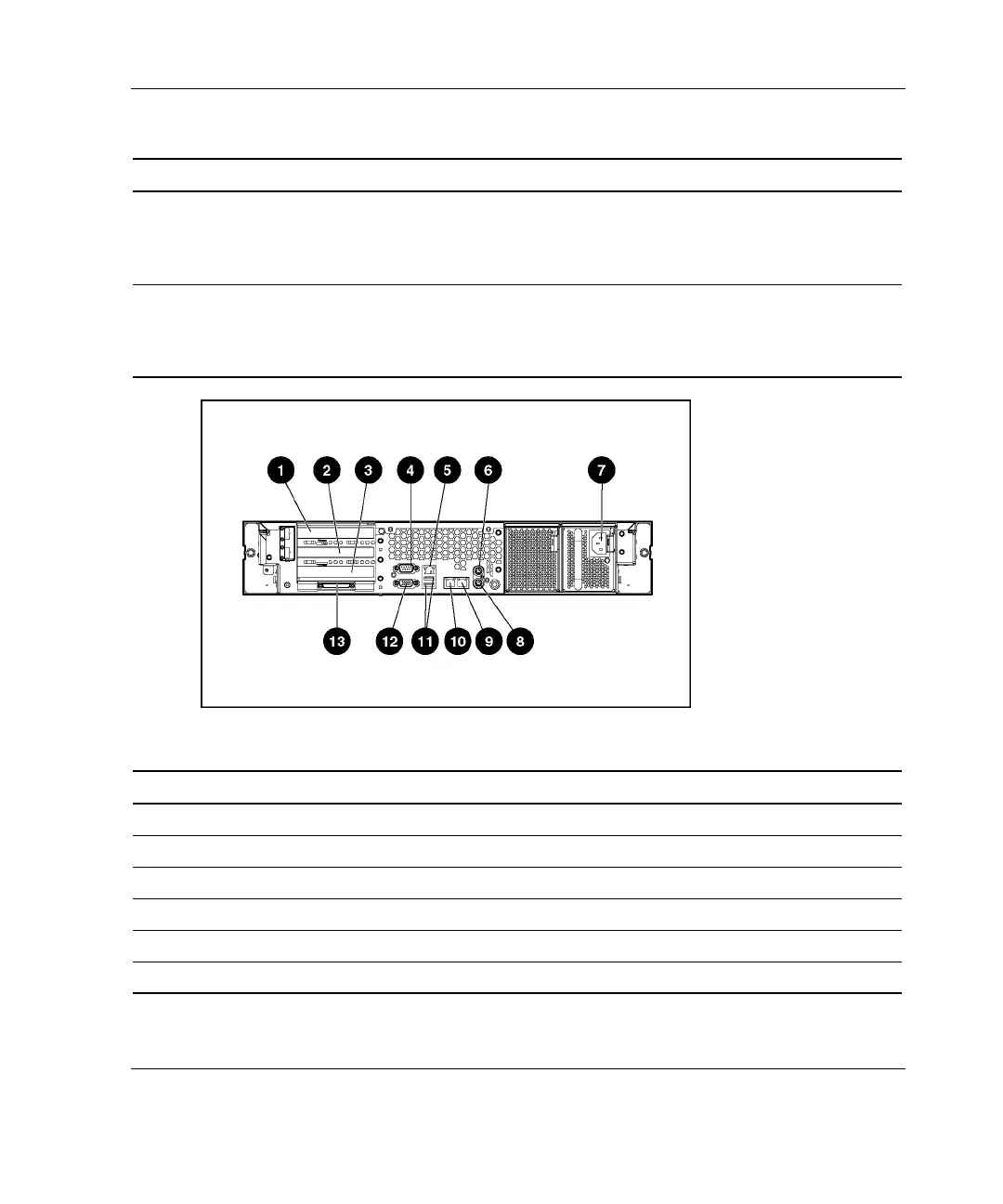

Table 2-3: Rear Panel Components

Item Description Connector Color

1 Hot-plug PCI-X expansion slot 3 (bus 6) 64-bit/100-MHz 3.3V N/A

2 Hot-plug PCI-X expansion slot 2 (bus 6) 64-bit/100-MHz 3.3V N/A

3 Non-hot-plug PCI-X expansion slot 1 (bus 3) 64-bit/133-MHz 3.3V N/A

4 Serial connector Teal

5 iLO connector N/A

6 Mouse connector Green

continued

HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide 2-5

HP CONFIDENTIAL Codename: Sopwith Part Number: 252621-002 Last Saved On: 11/8/02 1:59 PM

Questions and Answers:

Need help?

Do you have a question about the HP ProLiant DL380 G3 with MSA1000 and is the answer not in the manual?

HP ProLiant DL380 G3 with MSA1000 Specifications

General

Rack Height	2U
Hard Drive Interface	Ultra320 SCSI
Remote Management	Integrated Lights-Out (iLO)
Memory	PC2100 DDR SDRAM
Storage Controller	Smart Array 5i Plus
Network	Dual embedded NC7781 Gigabit NIC
Expansion Slots	6 PCI-X (64-bit/100 MHz)
Form Factor	Rackmount
MSA1000 Storage	External storage enclosure connected via SCSI
RAID Levels	0, 1, 5
Power Supply	Redundant Power Supply Optional
Drive Bays	6 hot-plug SCSI bays
Operating System Support	Windows Server, Linux
Processor	Intel Xeon (up to 3.6 GHz)
