Setup and Installation of the Packaged Cluster
Table 2-3: Rear Panel Components
continued
Item Description Connector Color
7 Power cord connector N/A
8 Keyboard connector Purple
9 NIC 1 connector N/A
10 NIC 2 connector N/A
11 USB connectors Black
12 Video connector Blue
13 VHDCI SCSI connector (port 1) N/A

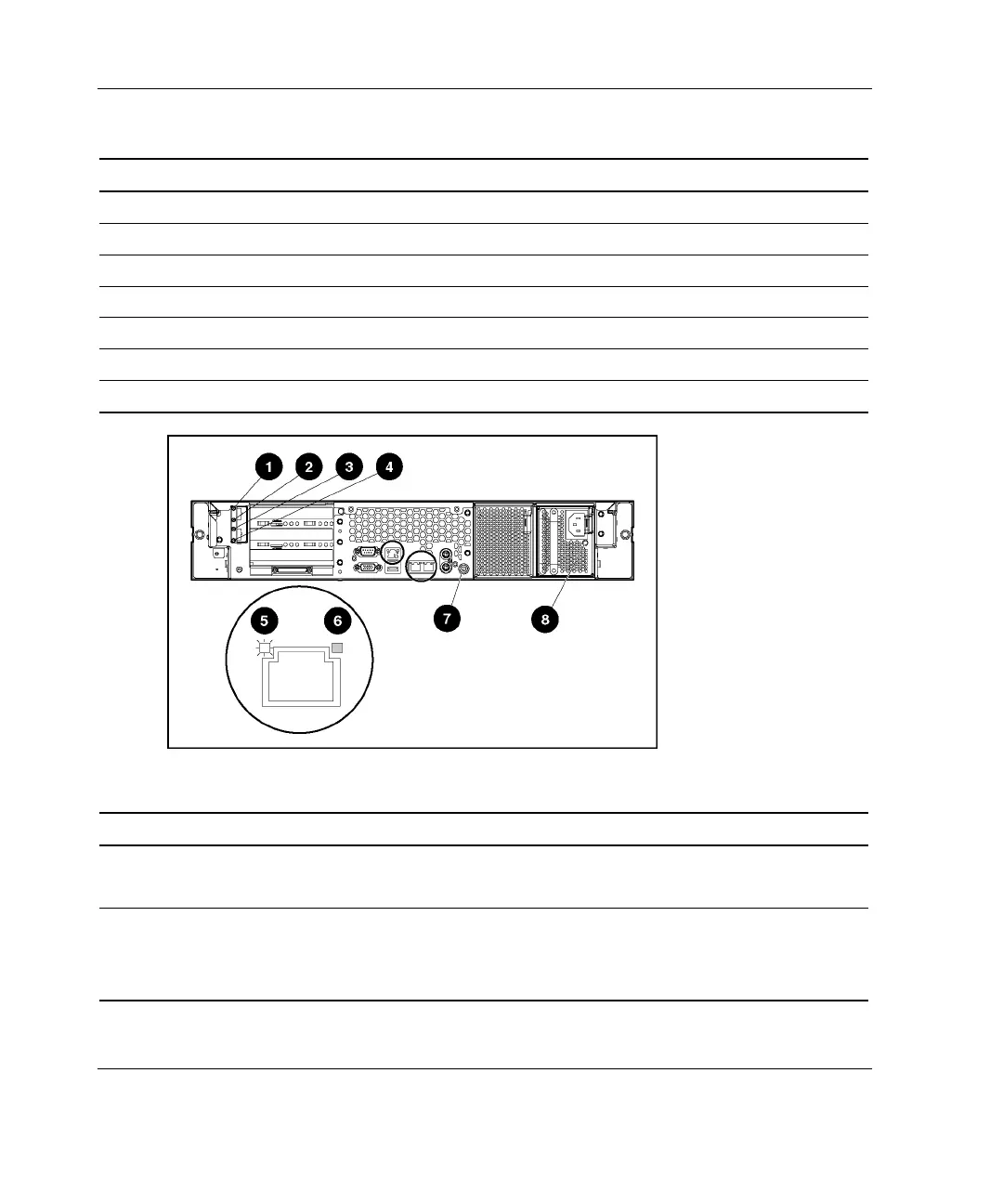

Table 2-4: Rear Panel LEDs and Buttons
Item Description LED Color Status
1 PCI Hot Plug fault LED (slot 3) Amber On = Expansion board failed
Off = Normal
2 PCI Hot Plug power LED (slot 3) Green On = Power is applied to the slot
Flashing = Power is cycling
Off = Power is not applied to the slot
continued
2-6 HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL Codename: Sopwith Part Number: 252621-002 Last Saved On: 11/8/02 1:59 PM

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HP ProLiant DL380 G3 with MSA1000 and is the answer not in the manual?

HP ProLiant DL380 G3 with MSA1000 Specifications

General IconGeneral
Rack Height2U
Hard Drive InterfaceUltra320 SCSI
Remote ManagementIntegrated Lights-Out (iLO)
MemoryPC2100 DDR SDRAM
Storage ControllerSmart Array 5i Plus
NetworkDual embedded NC7781 Gigabit NIC
Expansion Slots6 PCI-X (64-bit/100 MHz)
Form FactorRackmount
MSA1000 StorageExternal storage enclosure connected via SCSI
RAID Levels0, 1, 5
Power SupplyRedundant Power Supply Optional
Drive Bays6 hot-plug SCSI bays
Operating System SupportWindows Server, Linux
ProcessorIntel Xeon (up to 3.6 GHz)
