HP ProLiant DL380 G3 with MSA1000 User Manual

Setup and Installation of the Packaged Cluster
If you are installing the Smart Array Cluster Storage system in an M-Series rack,
contact an authorized reseller to obtain an M-Series Rack Rail option kit.
1. Locate the following materials necessary for installing the storage system.

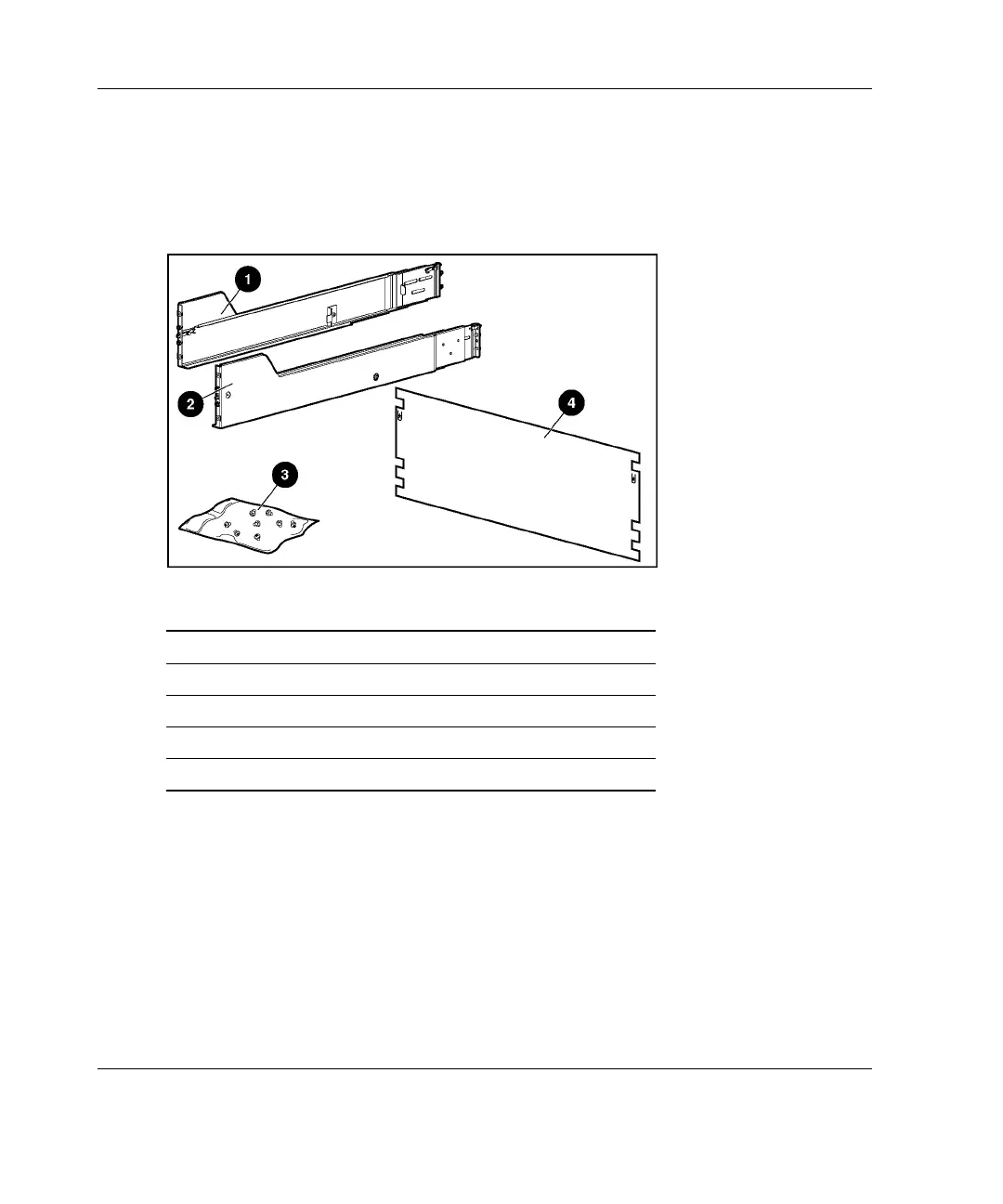

Table 2-9: Rack Mounting Hardware and Template
Item Description
1 Rack rail (left)
2 Rack rail (right)
3 Pins for round-hole rack conversion
4 4U rack template
IMPORTANT: Install the storage system in the rack, leaving enough space above to install
the servers. The following procedure details installation in a square-hole rack. For installation
procedures concerning round-hole racks, refer to the HP Smart Array Cluster Storage System
User Guide on the Documentation CD.
2-18 HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL Codename: Sopwith Part Number: 252621-002 Last Saved On: 11/8/02 1:59 PM

HP ProLiant DL380 G3 with MSA1000 Specifications

General

Rack Height	2U
Hard Drive Interface	Ultra320 SCSI
Remote Management	Integrated Lights-Out (iLO)
Memory	PC2100 DDR SDRAM
Storage Controller	Smart Array 5i Plus
Network	Dual embedded NC7781 Gigabit NIC
Expansion Slots	6 PCI-X (64-bit/100 MHz)
Form Factor	Rackmount
MSA1000 Storage	External storage enclosure connected via SCSI
RAID Levels	0, 1, 5
Power Supply	Redundant Power Supply Optional
Drive Bays	6 hot-plug SCSI bays
Operating System Support	Windows Server, Linux
Processor	Intel Xeon (up to 3.6 GHz)
