Setup and Installation of the Packaged Cluster

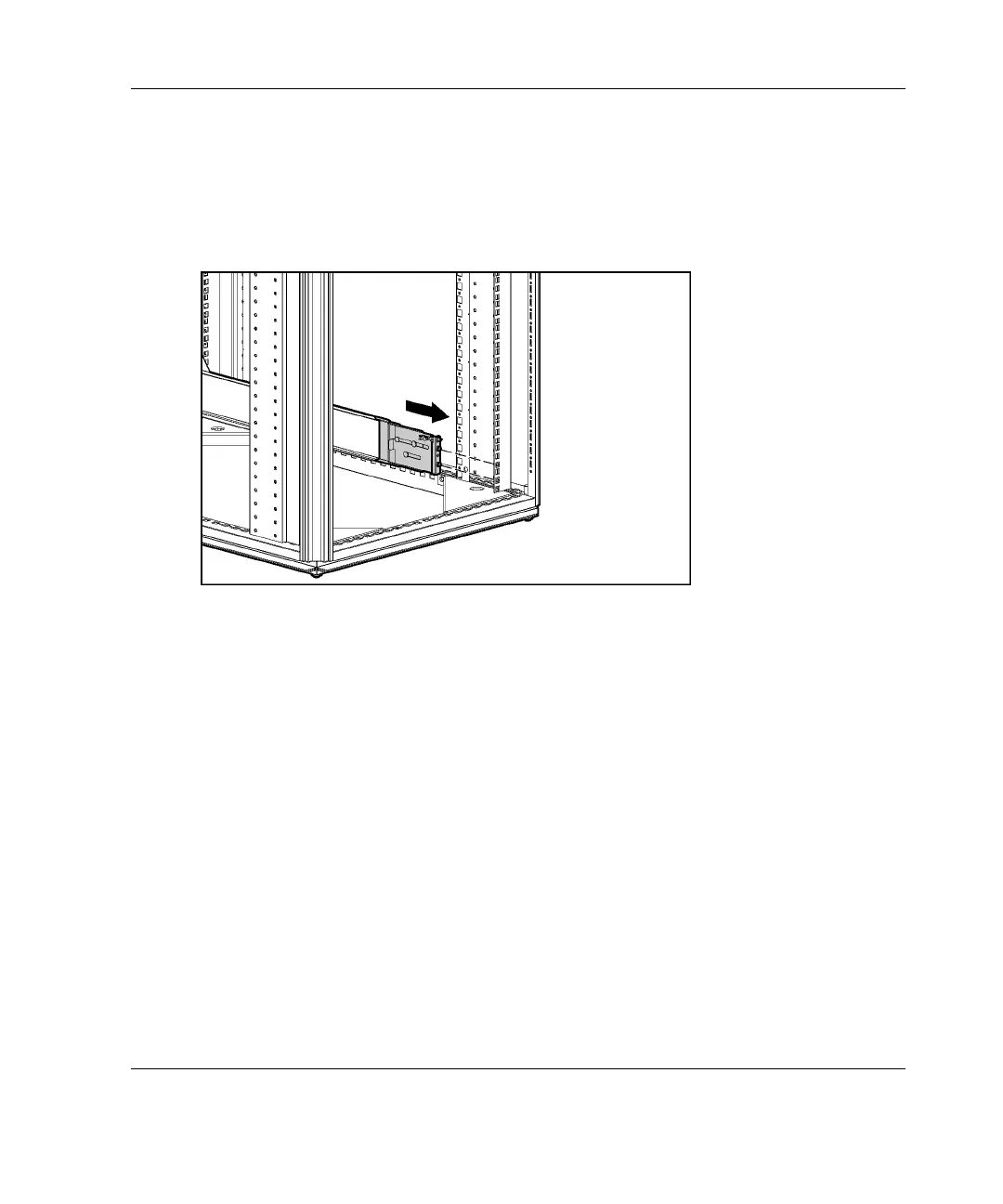

4. Slide the back end of the left rack rail into the inside rear of the rack. Be sure that
the pins extend through the holes marked during the rack template procedure.
IMPORTANT: Be sure that the scissor-type locking latches engage when the ends of the rail
seat into the rack uprights.
5. Repeat steps 3 and 4 for the right rack rail.
HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide 2-21
HP CONFIDENTIAL Codename: Sopwith Part Number: 252621-002 Last Saved On: 11/8/02 1:59 PM
