Setup and Installation of the Packaged Cluster

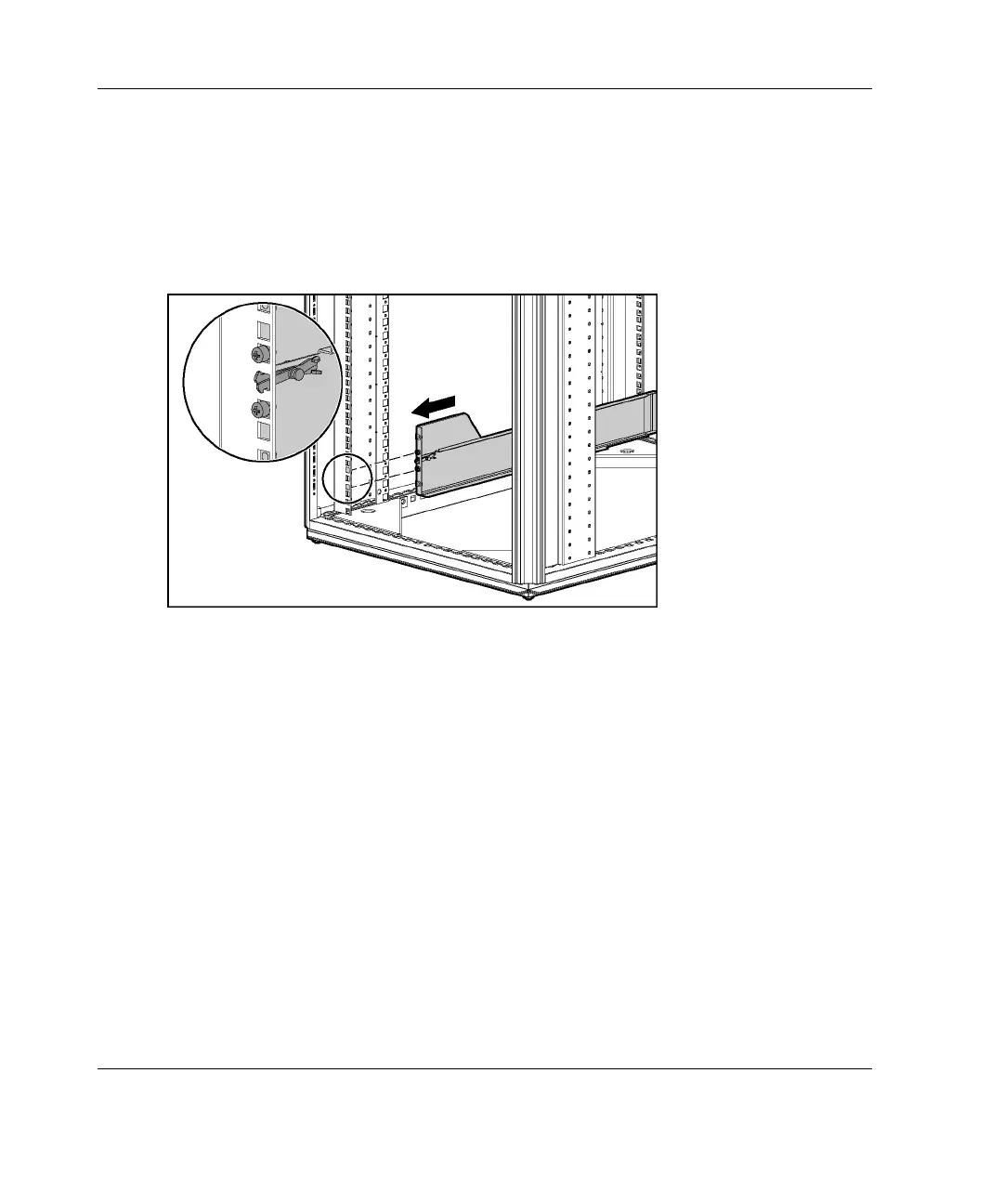

3. Insert the front end of the left rack rail into the inside front of the rack. Be sure
that the pins extend through the holes marked during the rack template
procedure.
IMPORTANT: Be sure that the scissor-type locking latches engage when the ends of the rail
seat into the rack uprights.
2-20 HP ProLiant DL380 Generation 3 Packaged Cluster Setup and Installation Guide
HP CONFIDENTIAL Codename: Sopwith Part Number: 252621-002 Last Saved On: 11/8/02 1:59 PM
