6. Install the Powered Serial Port expansion card into the bottom socket on the riser card. Move the
card toward the rear of the chassis so that the bracket on the card is aligned with the open slot
on the rear of the chassis (1). Press the card straight down into the expansion socket on the
riser card (2).
NOTE: The Powered Serial Port expansion card must be installed in the bottom socket on the
riser card. The bottom socket is designed specifically for that card. DO NOT attempt to install
any other card in the bottom socket.

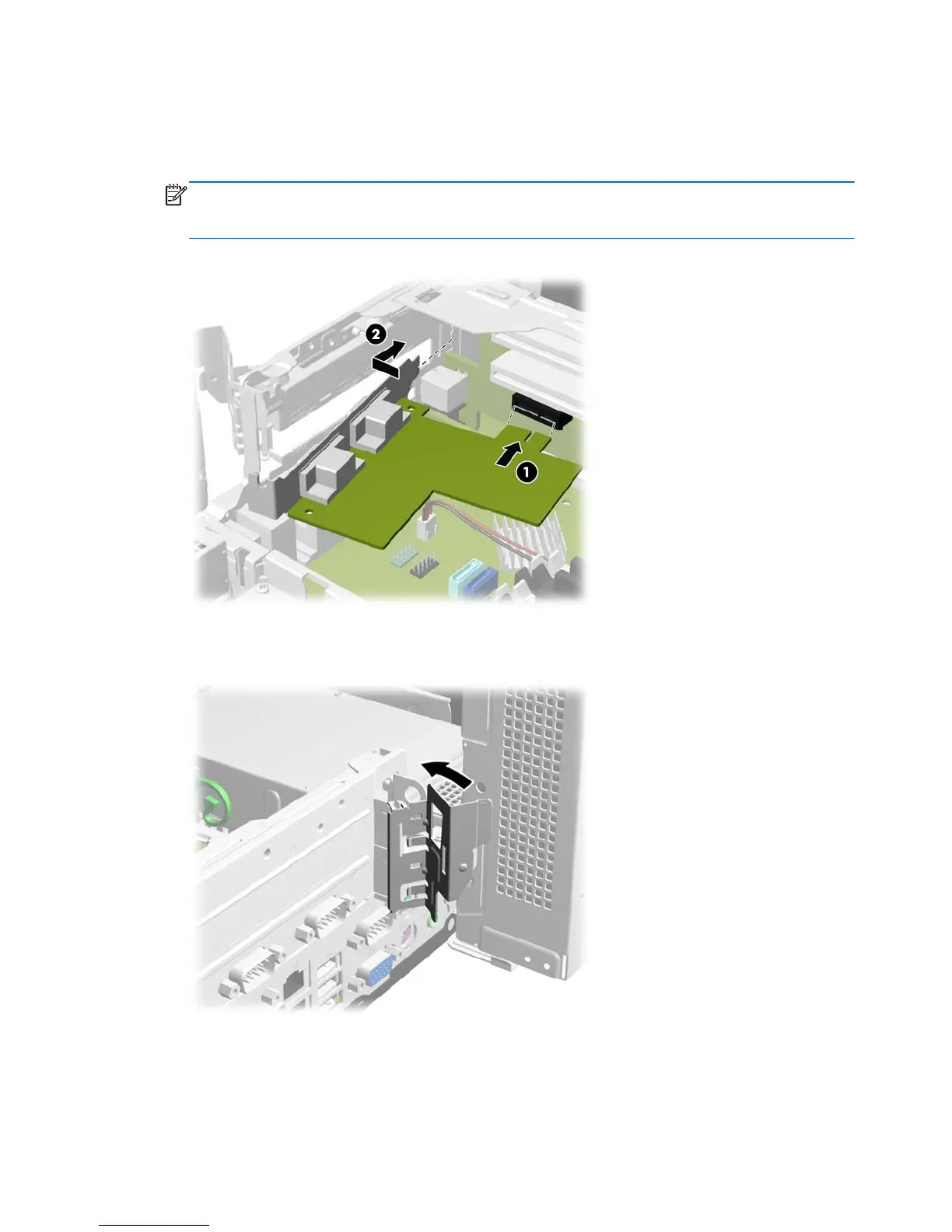

Figure 7-24 Installing the Powered Serial Port Expansion Card in the Riser Card
7. Close the expansion card retention latch.
Figure 7-25 Closing the Expansion Card Retention Latch
8. Rotate the power supply back down to its normal position.
9. Reassemble and reconfigure the computer, if necessary.
66 Chapter 7 Removal and Replacement Procedures

HP rp5800 Specifications

General

Processor	Intel Core i3-2120 (3.3 GHz, 3 MB cache, 2 cores)
Memory	4 GB DDR3
Storage	500 GB SATA (7200 rpm)
Operating System	Windows 7 Professional (64-bit)
Ports	VGA, DisplayPort, serial, parallel, audio in/out, RJ-45
Power Supply	240W
