5. Disconnect the power cable and data cable from the back of the hard drive.
6. Press down on the green release latch next to the hard drive (1). While holding the latch down,
slide the drive forward until it stops, then lift the drive up and out of the bay (2).

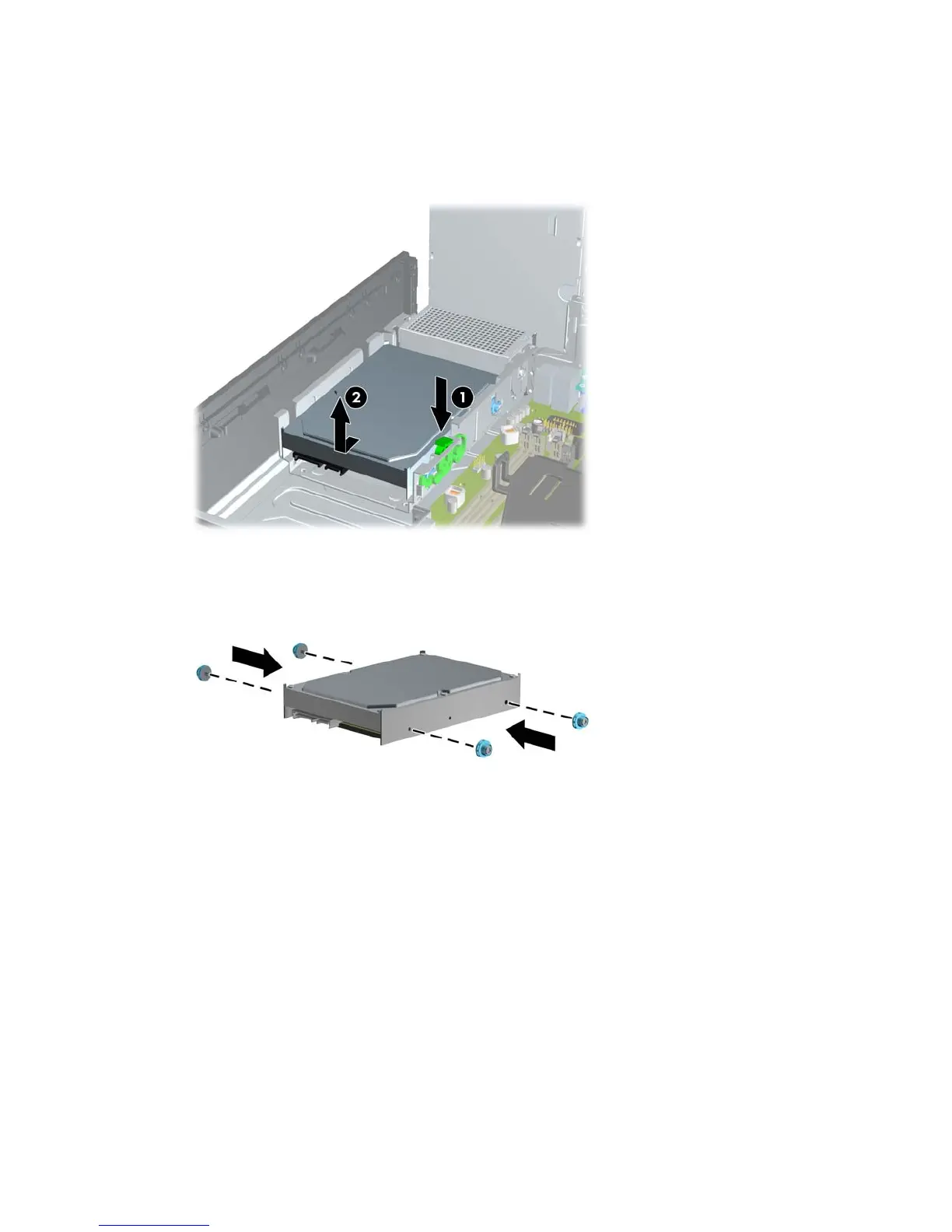

Figure 7-45 Removing the Hard Drive
7. To install a hard drive, you must transfer the silver and blue isolation mounting guide screws
from the old hard drive to the new hard drive.
Figure 7-46 Installing Primary Hard Drive Guide Screws
82 Chapter 7 Removal and Replacement Procedures

HP rp5800 Specifications

General

Processor	Intel Core i3-2120 (3.3 GHz, 3 MB cache, 2 cores)
Memory	4 GB DDR3
Storage	500 GB SATA (7200 rpm)
Operating System	Windows 7 Professional (64-bit)
Ports	VGA, DisplayPort, serial, parallel, audio in/out, RJ-45
Power Supply	240W
