8. Align the guide screws with the slots on the chassis drive cage, press the hard drive down into
the bay, then slide it back until it stops and locks in place.

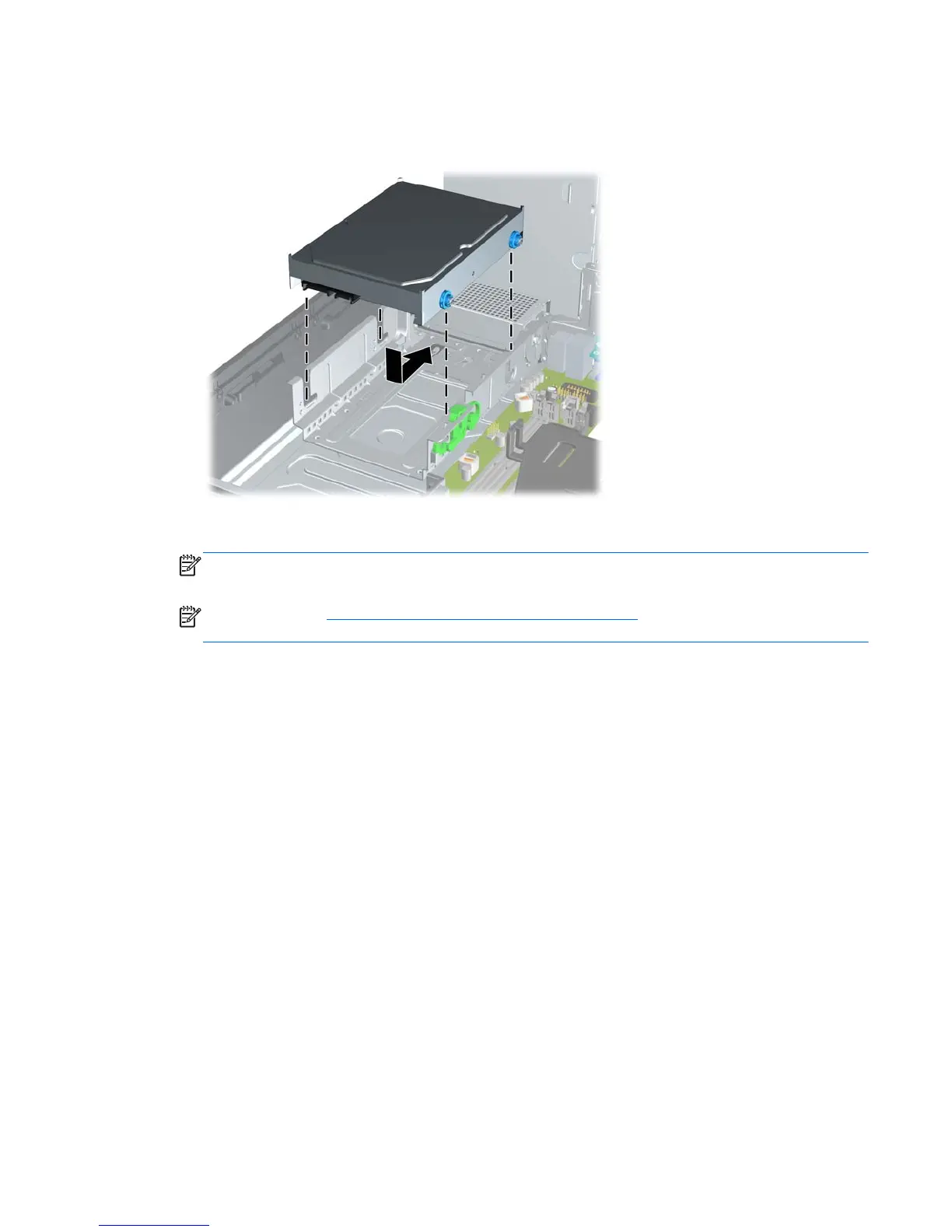

Figure 7-47 Installing the Hard Drive
9. Connect the power cable and data cable to the back of the hard drive.
NOTE: The data cable for the primary hard drive must be connected to the dark blue connector
labeled SATA0 on the system board to avoid any hard drive performance problems.
NOTE: Refer to System Board Drive Connections on page 75 for an illustration of the system
board drive connectors.
10. Reassemble the computer.
Drives 83
