Diskette drive (optional)
To remove a diskette drive:
1. Disconnect power from the system (
Pre-disassembly procedures on page 55). Remove the access
panel (
Access panel on page 63) and the front bezel (Front bezel on page 64).
2. Disconnect the data and power cables from the back of the diskette drive.

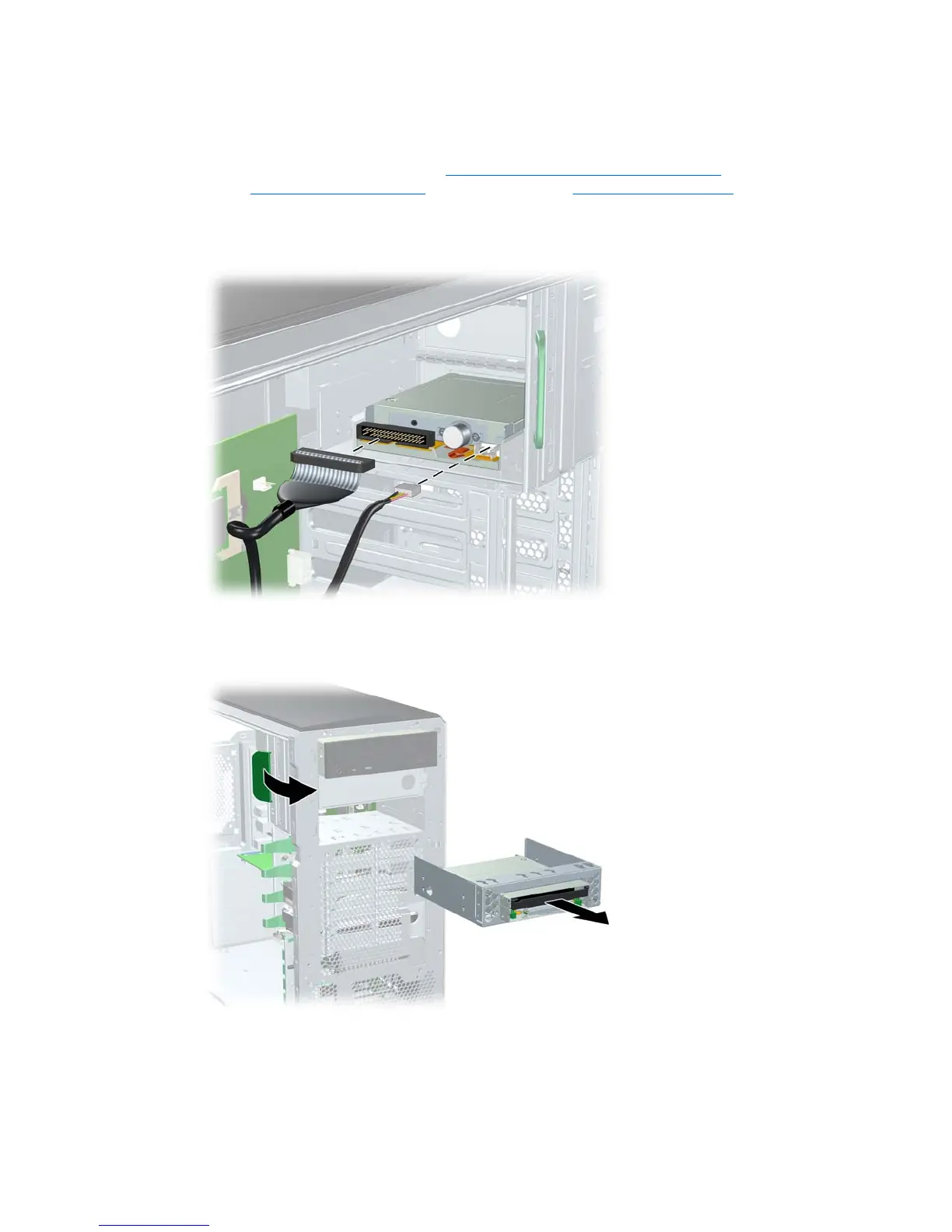

Figure 5-38 Disconnecting cables from the diskette drive
3. While lifting the green drivelock release tab, slide the drive forward out of the chassis.
Figure 5-39 Removing the diskette drive from the chassis
ENWW Removing and replacing components 93
