C Appendix C— Connector pins

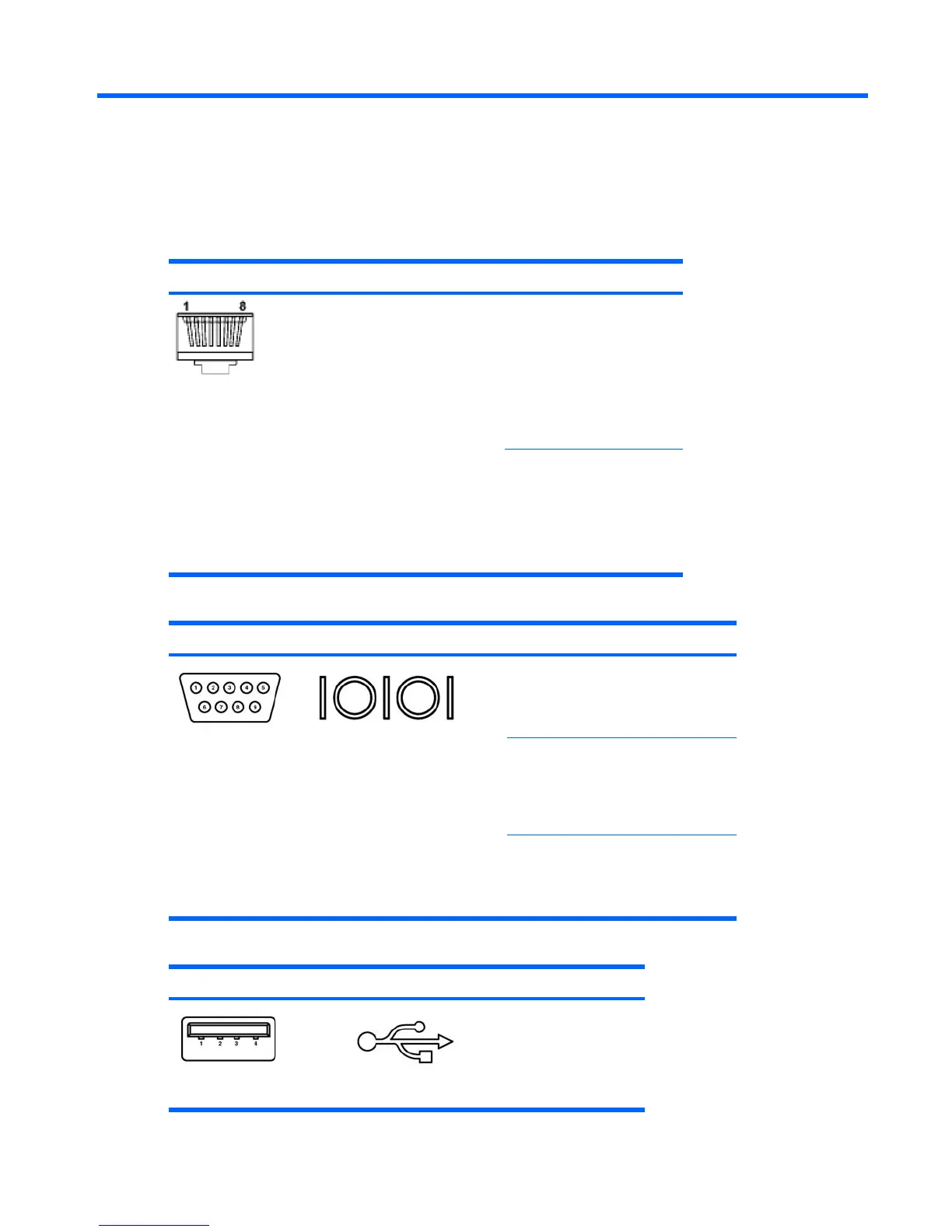

Connector pin descriptions
Ethernet connector Pin Signal
1
2
3
4
(+) Transmit
Data
(-) Transmit
Data
(+) Receive
Data
Unused
5
6
7
8
Unused
(-) Receive
Data
Unused
Unused
Serial connector Pin Signal
1
2
3
Carrier Detect
Receive Data
Transmit Data
4
5
6
Data Terminal Ready
Signal
Ground
Data Set Ready
7
8
9
Request to Send
Clear to Send
Ring Indicator
USB connector Pin Signal
1
2
3
4
+5 VDC
- Data
+ Data
GND
