Front bezel
To remove the front bezel:
1. Lift up on the three (1) tabs located on the front bezel.
2. Rotate the front bezel away (2) from the chassis, and remove the bezel.

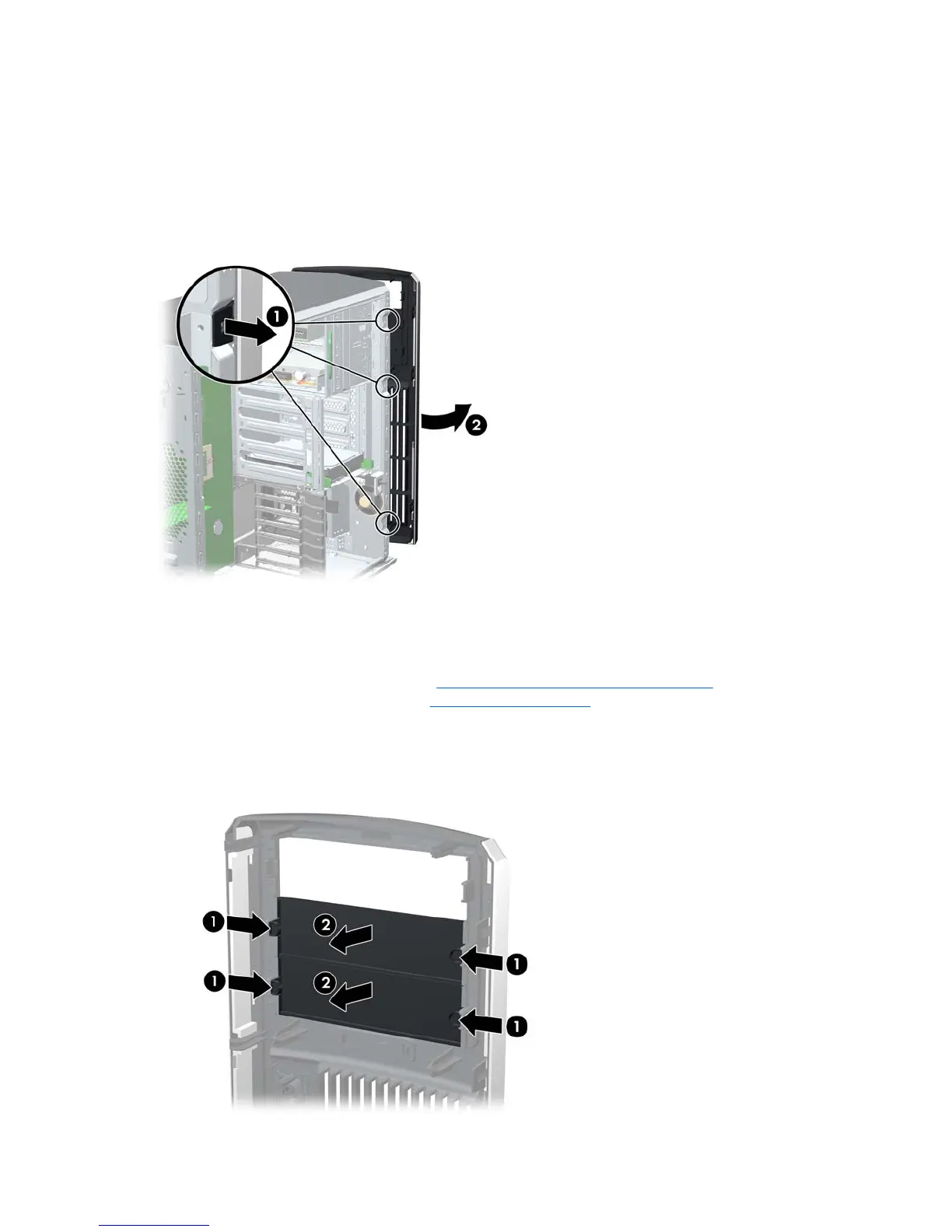

Figure 5-6 Opening the front bezel
Bezel blanks
To remove the bezel blanks:
1. Disconnect power from the system, (
Pre-disassembly procedures on page 55), remove the access
panel, and remove the front bezel (
Front bezel on page 64)
2. Remove the bezel blanks by squeezing in on the tabs (1) and pulling in the bezel blanks (2).
Figure 5-7 Removing the bezel blanks
64 Chapter 5 Removal and replacement procedures ENWW
