5. Connect the CPU heatsink fan connector to the system board (2).

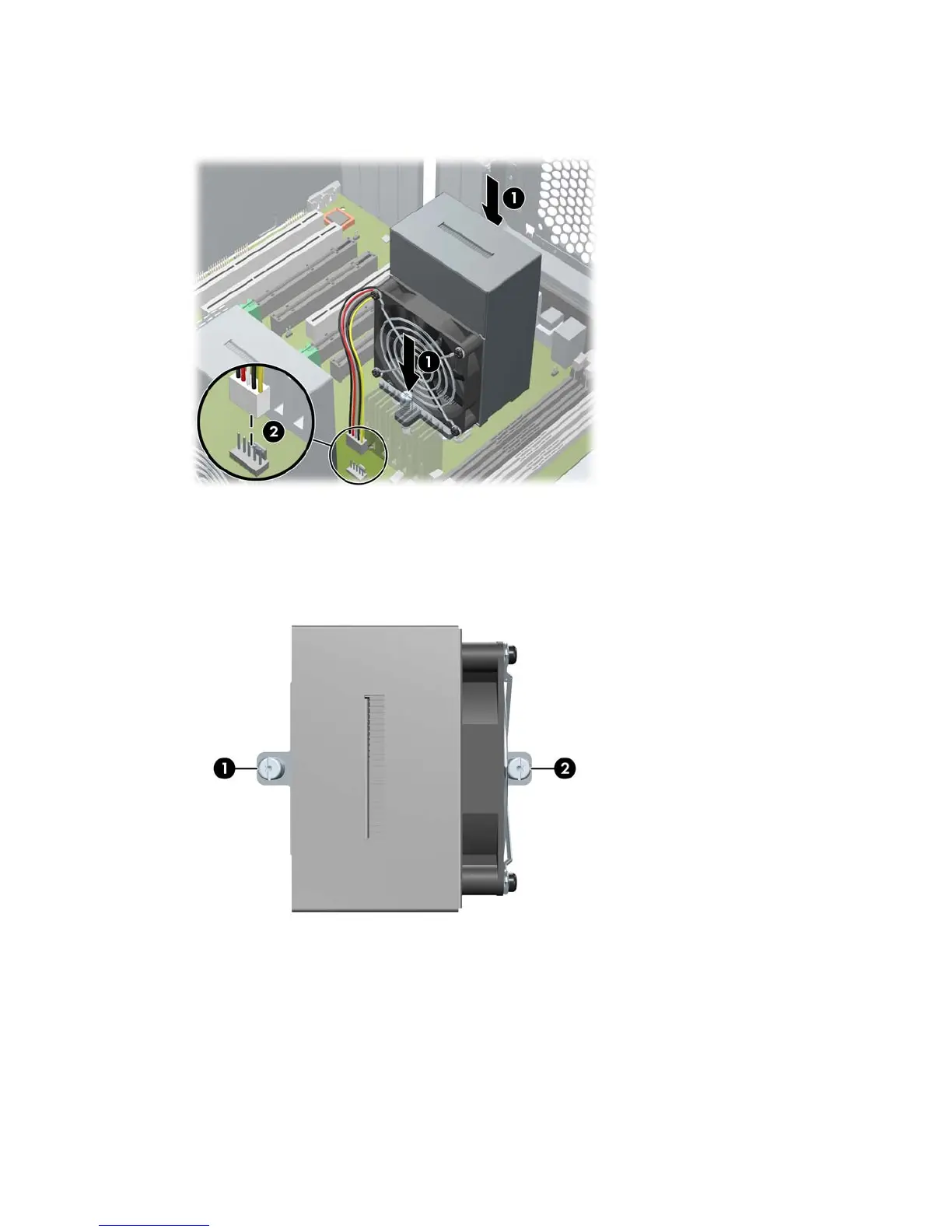

Figure 5-72 Replacing the CPU heatsink on the system board
6. Insert and tighten the two CPU heatsink screws. First, tighten both screws partially so that the CPU
heatsink remains level. Next, fully tighten one screw (1), then fully tighten the remaining screw
(2). Tighten to a torque setting of 6 in-lb.
Figure 5-73 Identifying proper screw removal order
116 Chapter 5 Removal and replacement procedures ENWW
