Cabling and technology information | 76

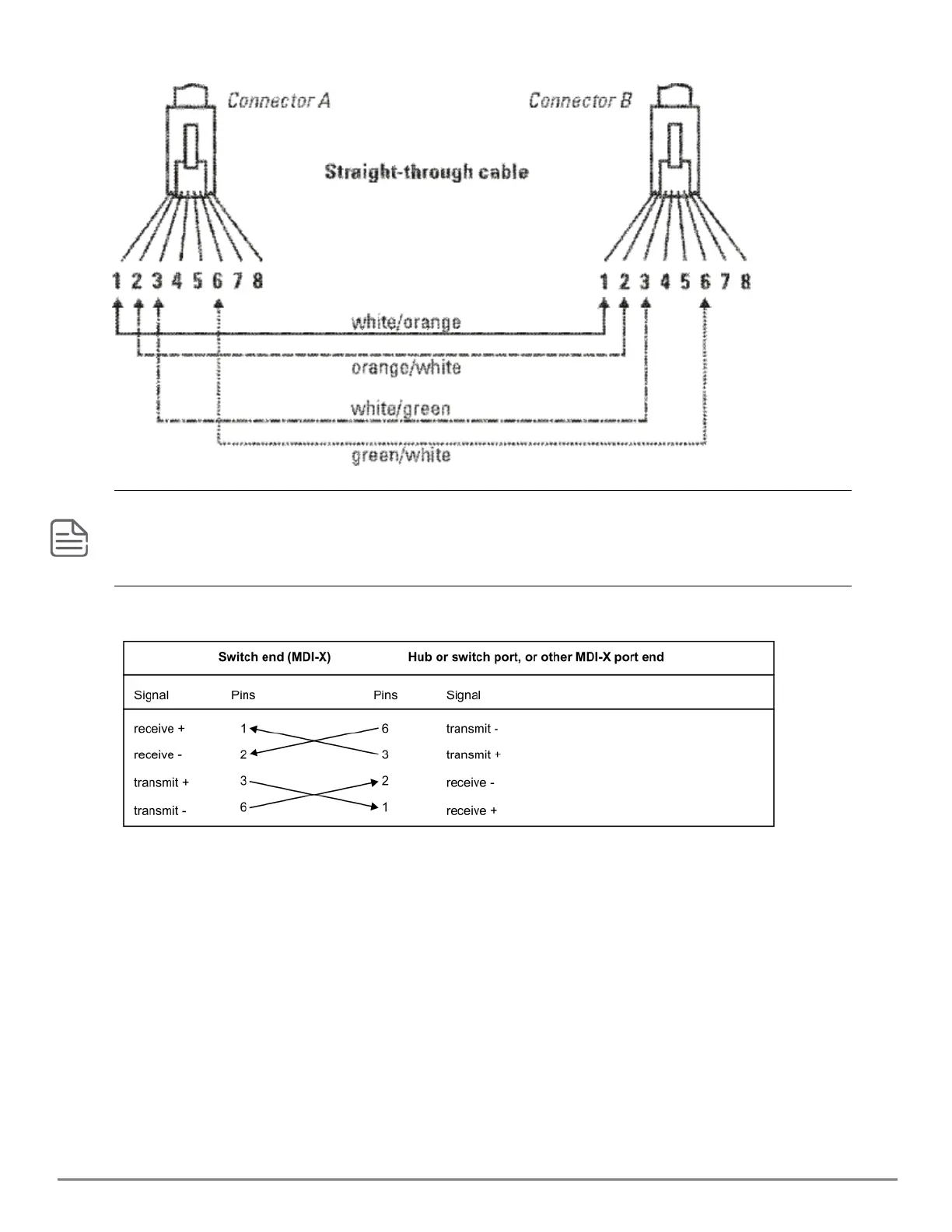

Figure 1 Cable Diagram
Pins 1 and 2 on connector “A” must be wired as a twisted pair to pins 1 and 2 on connector “B”.
Pins 3 and 6 on connector “A” must be wired as a twisted pair to pins 3 and 6 on connector “B”.
Pins 4, 5, 7, and 8 are not used in this application, although they may be wired in the cable.
Table 1: Pin Assignments
Straight-through twisted-pair cable for 1000 Mbps network
connections
1000Base-T connections require that all four pairs or wires be connected.
Figure 1 Cable Diagram
