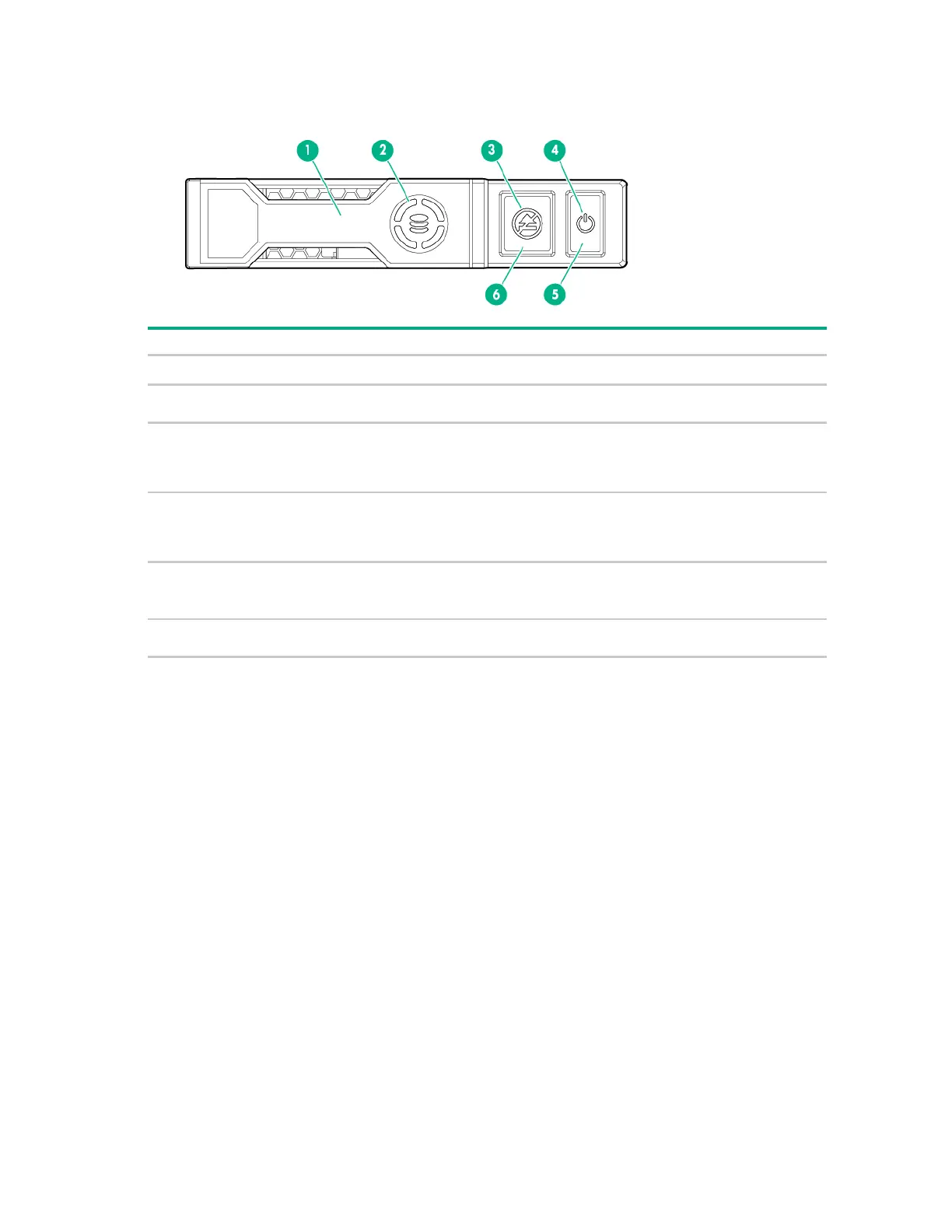

NVMe SSD components
Item
Component
Status
Definition
1
Release lever
—
Ejects the NVMe drive carrier from the cage.
2
Activity ring LED
Rotating green
Off
Drive activity
No drive activity
3
Do Not Remove
LED
Solid white
Flashing white
Off
Drive is powered on, and configured in system.
Do not remove the drive.
Ejection request pending. Do not remove the drive.
Drive removed from the PCIe bus, and can be ejected.
4
Power LED
Solid green
Flashing green
Off
Drive is powered on, and configured in system.
Do not remove the drive.
Ejection request pending. Do not remove the drive.
Drive removed from the PCIe bus, and can be ejected.
5
Power button
—
Momentary press to request drive removal from PCIe bus
and ejection. Drive removal request can be denied by
operating system.
6
Do Not Remove
button
—
Releases the release lever for removal and insertion.
Upon NVMe SSD insertion, an LED initiation sequence will be visible - lighting each LED in the carrier in sequence from left to
right. The sequence will cycle until the drive is recognized by the system. When the SSD is recognized by the system - the Do Not
Remove LED will be solid white and the Power LED will be solid green.
