Operations 21
4. Remove the access panel (on page 15).
5. Remove the mezzanine assembly (on page 20).

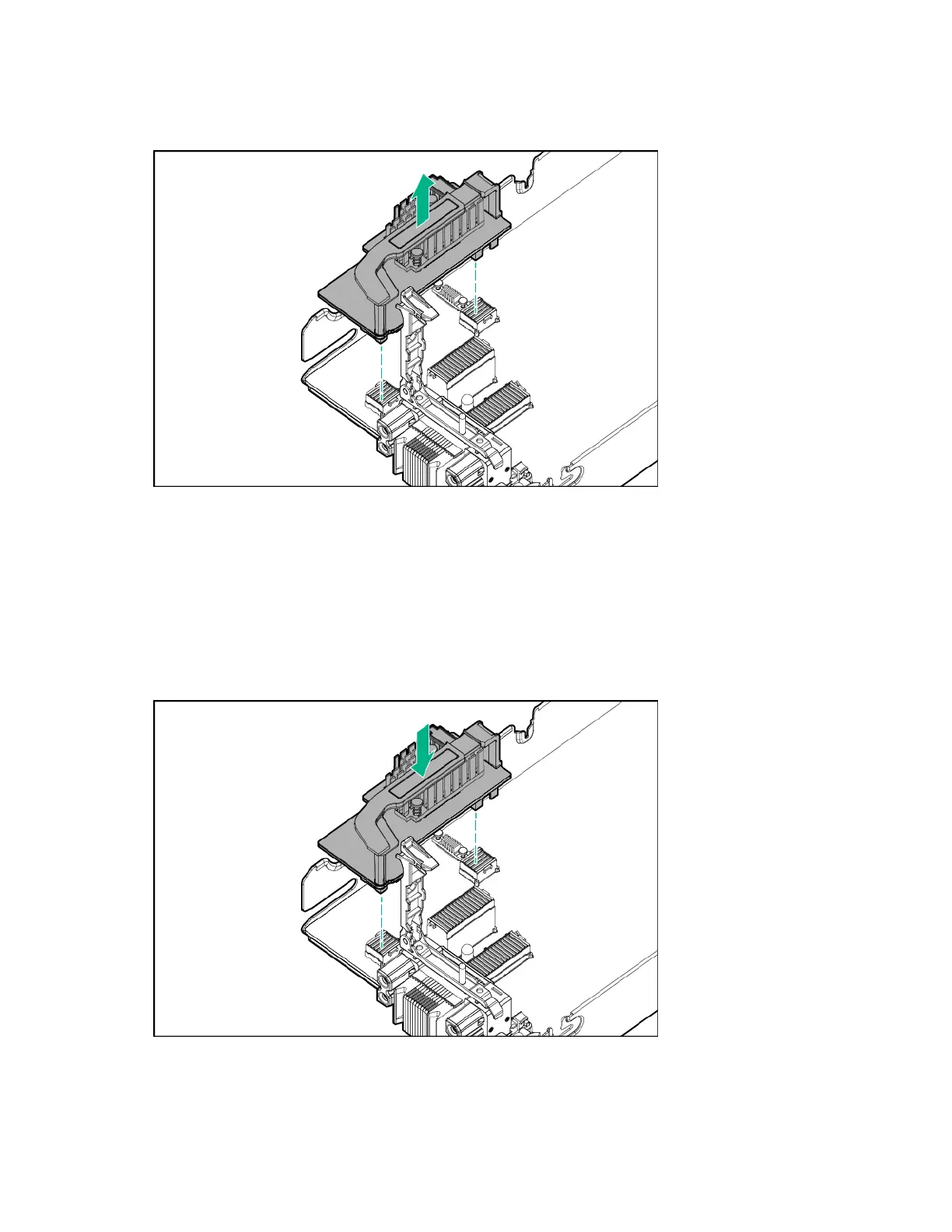

6. Use the FlexibleLOM handle to remove the FlexibleLOM from the system board.
Install the FlexibleLOM
1. Power down the server blade (on page 14).
2. Remove the server blade (on page 15).
3. Place the server blade on a flat, level work surface.
4. Remove the access panel (on page 15).
5. Remove the mezzanine assembly (on page 20).
6. Install the FlexibleLOM.
7. Install the mezzanine assembly ("Mezzanine card option" on page 35).
8. Install the access panel (on page 16).
9. Install the server blade (on page 28).
