HPE ProLiant BL460c Gen9

Component identification 11

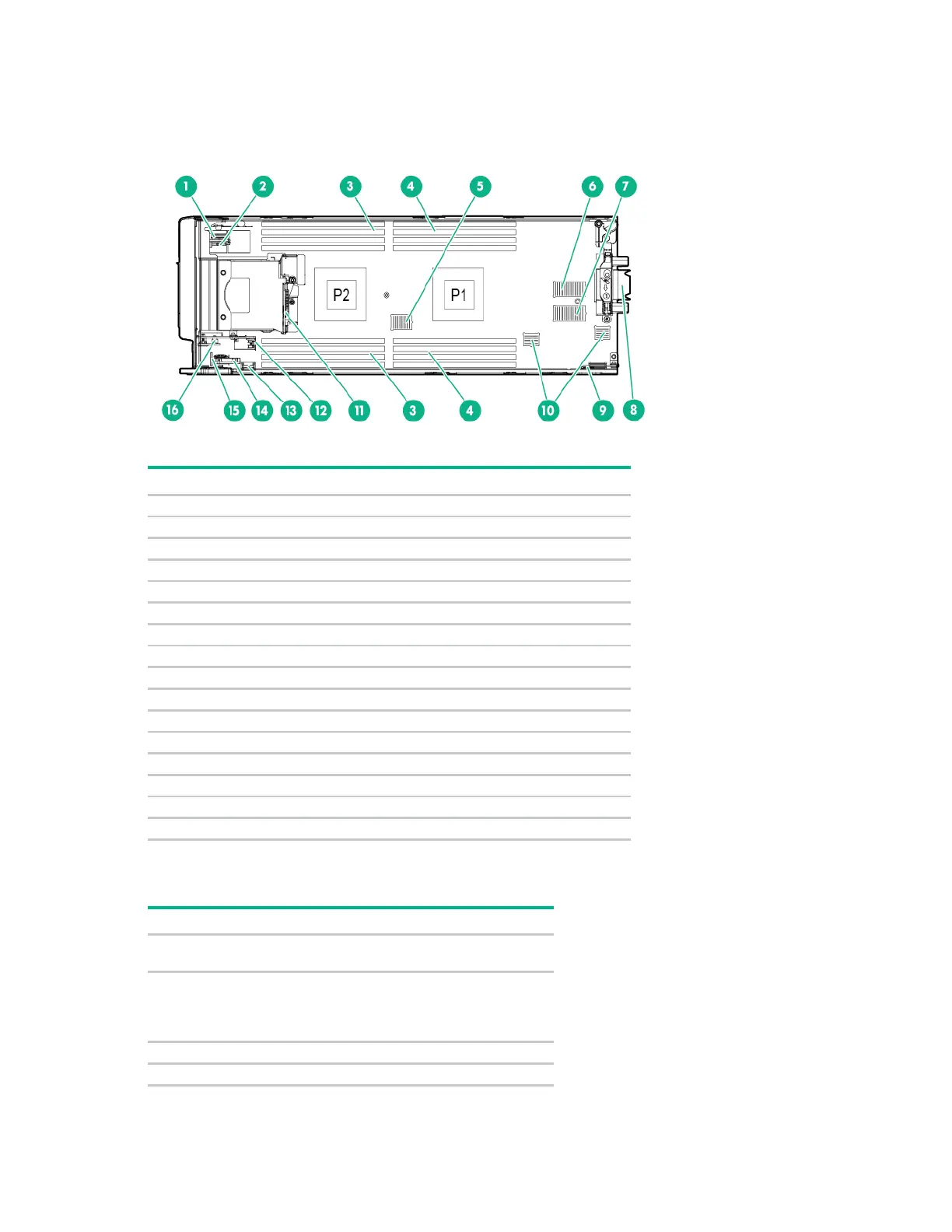

System board components
Item
Description
1
System battery
2
Solid state device connector (M.2)
3
Processor 2 DIMM slots (8)
4
Processor 1 DIMM slots (8)
5
SAS/SATA controller or NVMe pass-through board connector
6
Mezzanine connector 1 (Type A mezzanine only)
7
Mezzanine connector 2 (Type A or Type B mezzanine)
8
Enclosure connector
9
MicroSD card slot
10
FlexibleLOM connectors (2)
11
SAS/SATA or NVMe backplane
12
Internal USB 3.0 connector
13
Smart Storage Battery connector
14
Direct-connect SATA connector
15
System maintenance switch
16
TPM connector
System maintenance switch
Position
Default
Function
S1
Off
Off = iLO security is enabled.
On = iLO security is disabled.
S2
Off
Off = System configuration can be
changed.
On = System configuration is
locked.
S3
Off
Reserved
S4
Off
Reserved
