Operations 19
Remove the direct connect SATA cable
1. Power down the server blade (on page 14).
2. Remove the server blade (on page 15).
3. Place the server blade on a flat, level work surface.
4. Remove the access panel (on page 15).

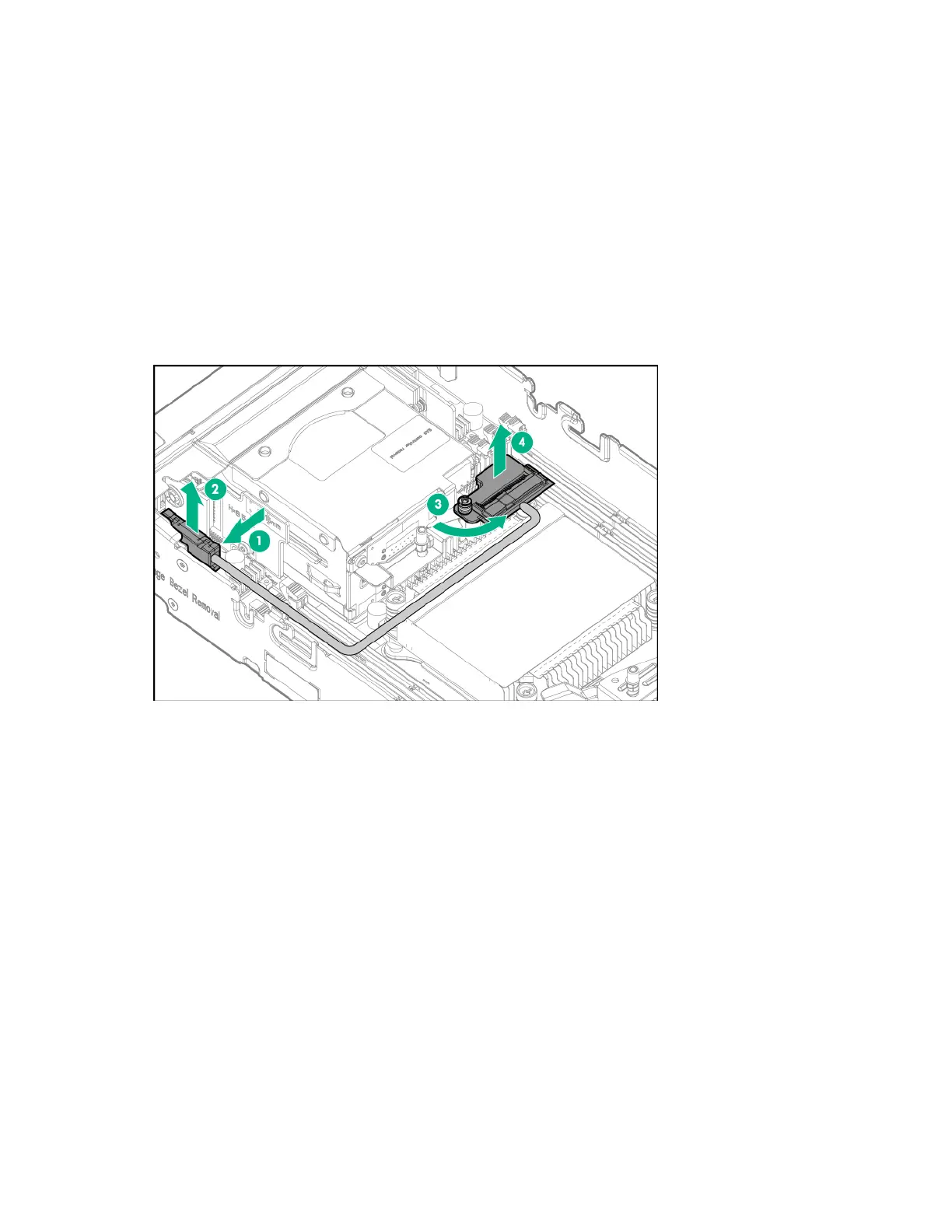

5. Remove the direct connect SATA cable.
a. Press in the latch on the connector.
b. Disconnect the connector from the system board.
c. Loosen the captive screw.
d. Disconnect the other end of the cable from the drive backplane.
e. Release the cable from the DIMM baffle.
Install the direct connect SATA cable
1. Power down the server blade (on page 14).
2. Remove the server blade (on page 15).
3. Place the server blade on a flat, level work surface.
4. Remove the access panel (on page 15).
5. Install the direct connect SATA cable.
a. Connect the direct connect SATA cable to the drive cage backplane.
b. Secure the captive screw.
c. Connect the other end of the cable to the system board.
