Operations 16

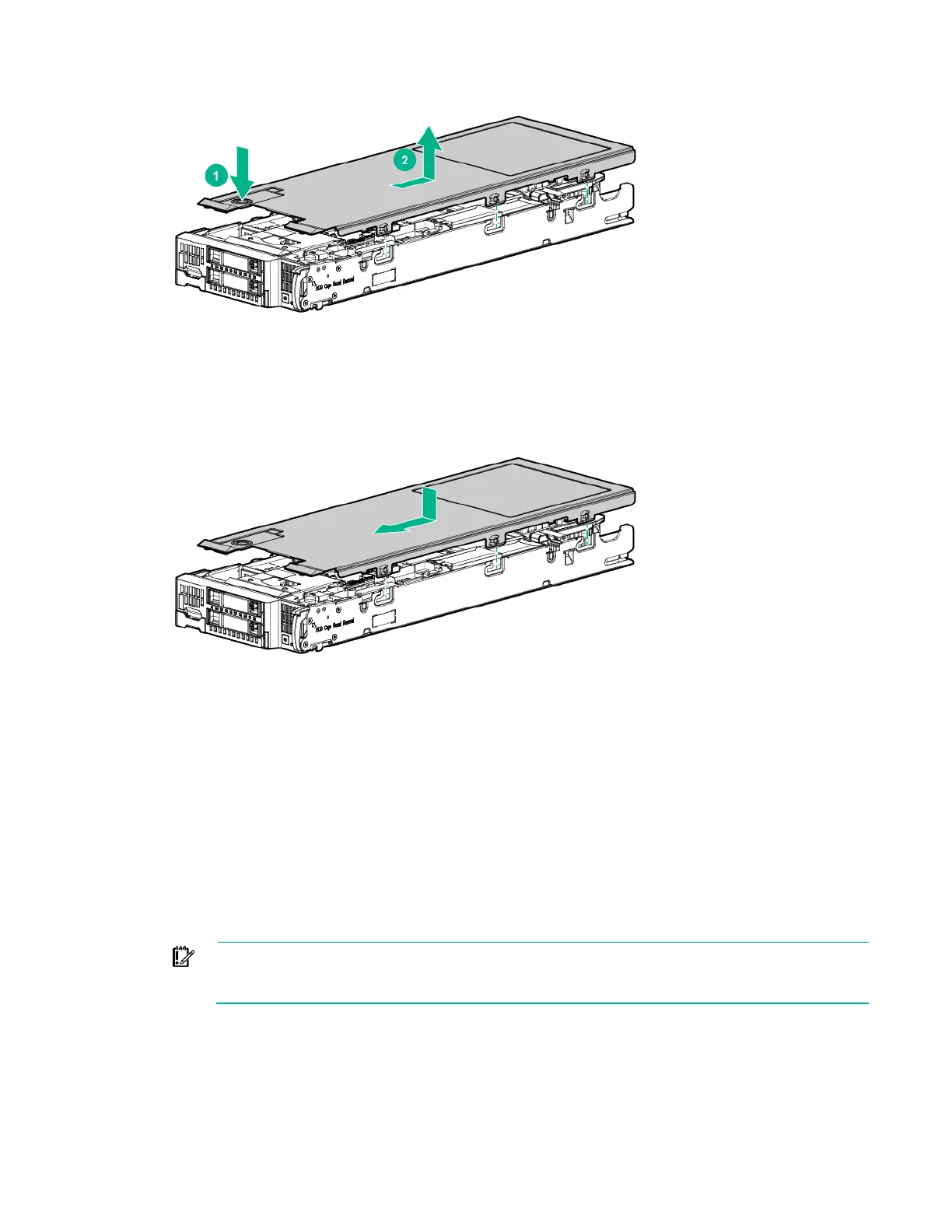

5. Slide the access panel towards the rear of the server blade, and then lift to remove the panel.
Install the access panel
1. Place the access panel on top of the server blade.
2. Slide the access panel forward until it clicks into place.
Remove the DIMM baffles
The server contains two DIMM baffles.
1. Power down the server blade (on page 14).
2. Remove the server blade (on page 15).
3. Place the server blade on a flat, level work surface.
4. Remove the access panel (on page 15).
5. If installed, remove the direct connect SATA cable ("Remove the direct connect SATA cable" on
page 19).
6. If installed, remove the internal USB drive. To locate the internal USB connector, see "System board
components (on page 11)."
IMPORTANT: When removing the right DIMM baffle, leave the Smart Storage Battery
installed on the baffle. Use the blue pull tab to disconnect the Smart Storage Battery cable from
the system board.
7. Remove one or more DIMM baffles:
