Hardware options installation 32
4. Determine the status of the drive from the LEDs ("NVMe SSD components" on page 10).
Storage controller/NVMe pass-through board
options
To install the component:
1. Back up all server blade data.
2. Power down the server blade (on page 14).
3. Remove the server blade (on page 15).
4. Place the server blade on a flat, level work surface.
5. Remove the access panel (on page 15).

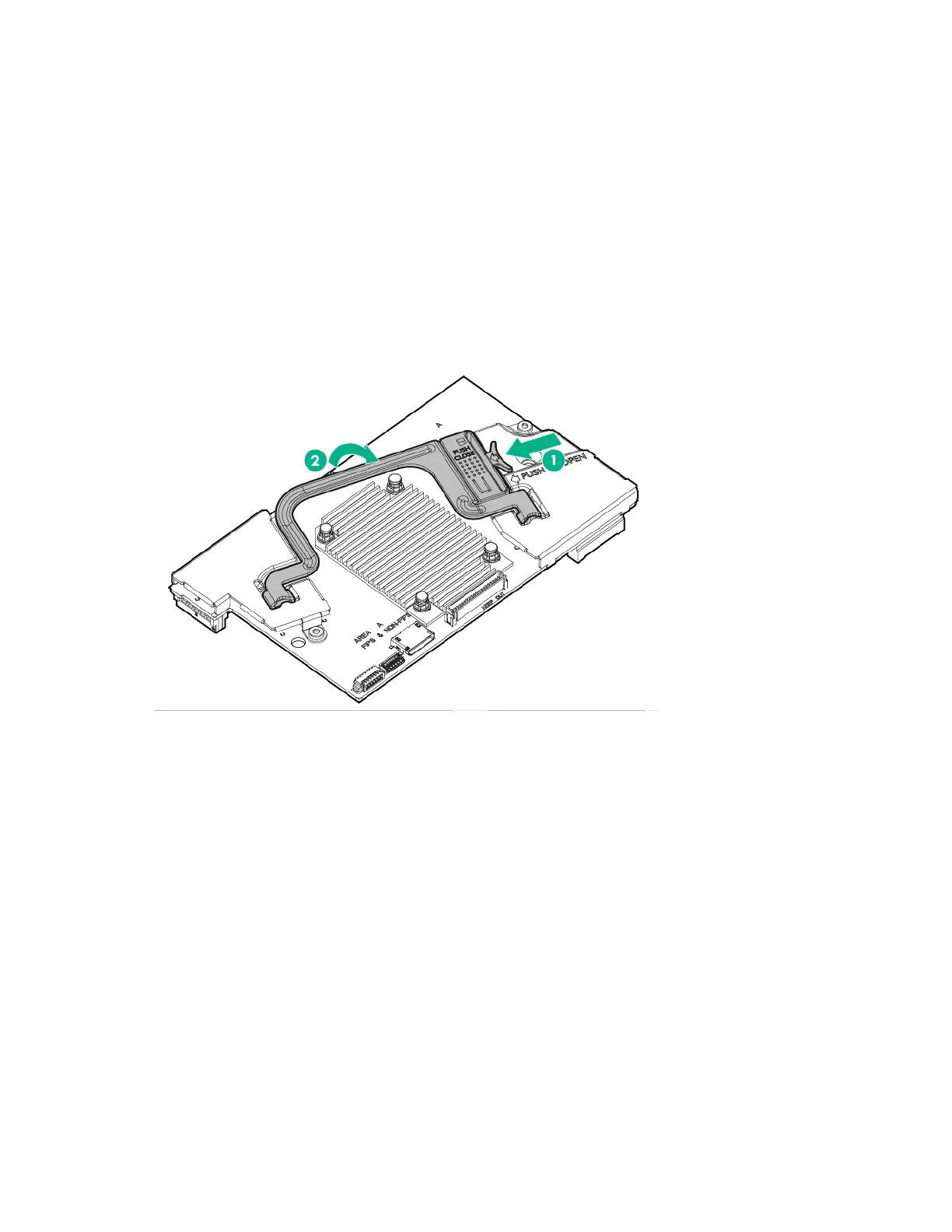

6. Prepare the storage controller/NVMe pass-through board for installation.
7. Align the storage controller/NVMe pass-through board with the alignment pins and lower it into
server blade.
