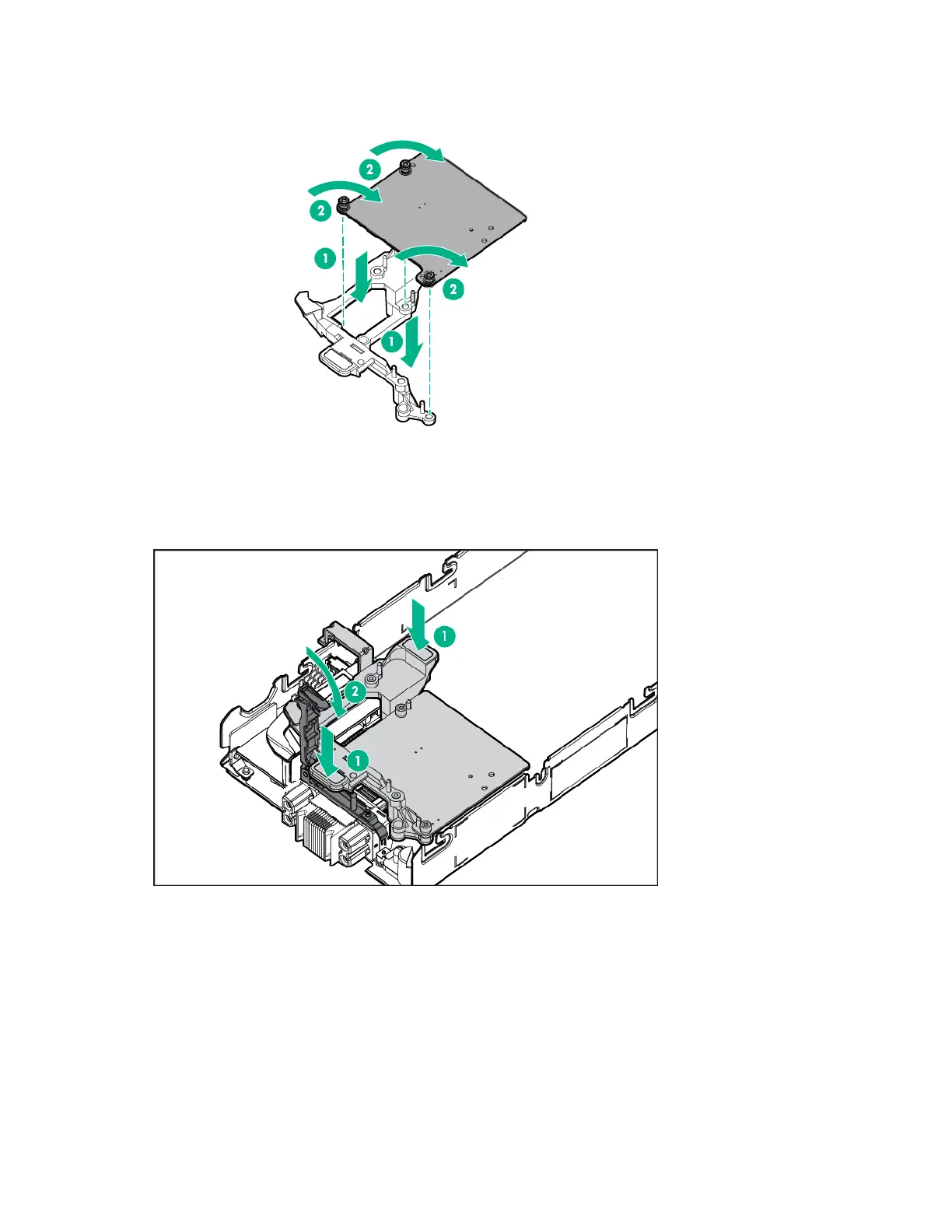

7. Install the mezzanine card in the mezzanine assembly, and then tighten the mezzanine card screws
to secure the card to the mezzanine assembly.
8. Align the mezzanine assembly with the guide pins on the system board, and then install the
mezzanine assembly on the system board.
9. Press down firmly on the mezzanine assembly handles, and then close the mezzanine assembly
latch.
10. Install the access panel (on page 16).
11. Install the server blade (on page 28).
12. Power up the server blade (on page 14).
M.2 enablement option
To install the component:
1. Power down the server blade (on page 14).
2. Remove the server blade (on page 15).
3. Place the server blade on a flat, level work surface.
