Operations 22
10. Power up the server blade (on page 14).
Remove the storage controller/NVMe pass-through
board
1. Back up all server blade data.
2. Power down the server blade (on page 14).
3. Remove the server blade (on page 15).
4. Place the server blade on a flat, level work surface.
5. Remove the access panel (on page 15).

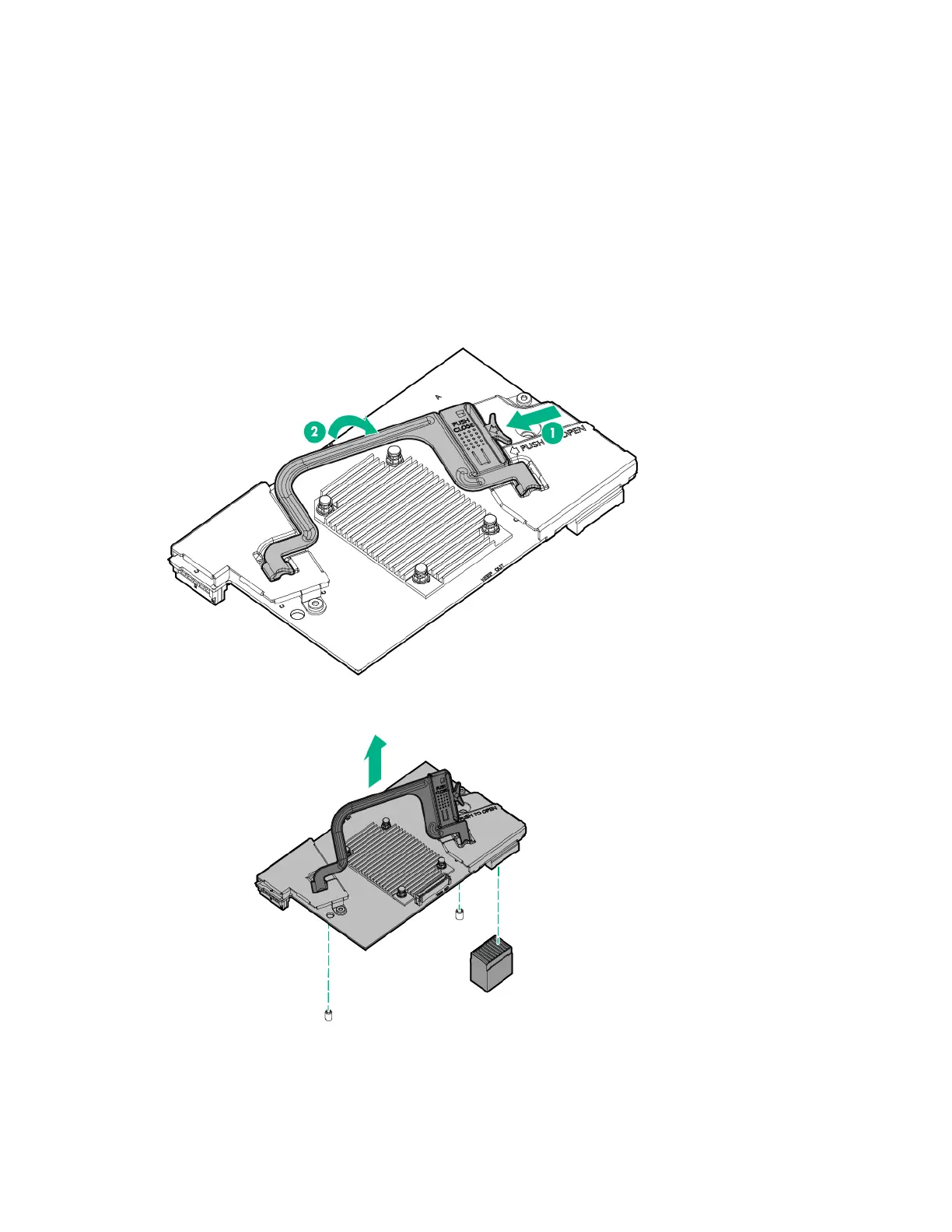

6. Prepare the storage controller/NVMe pass-through board for removal.
7. Remove the storage controller/NVMe pass-through board.
