Operations 23

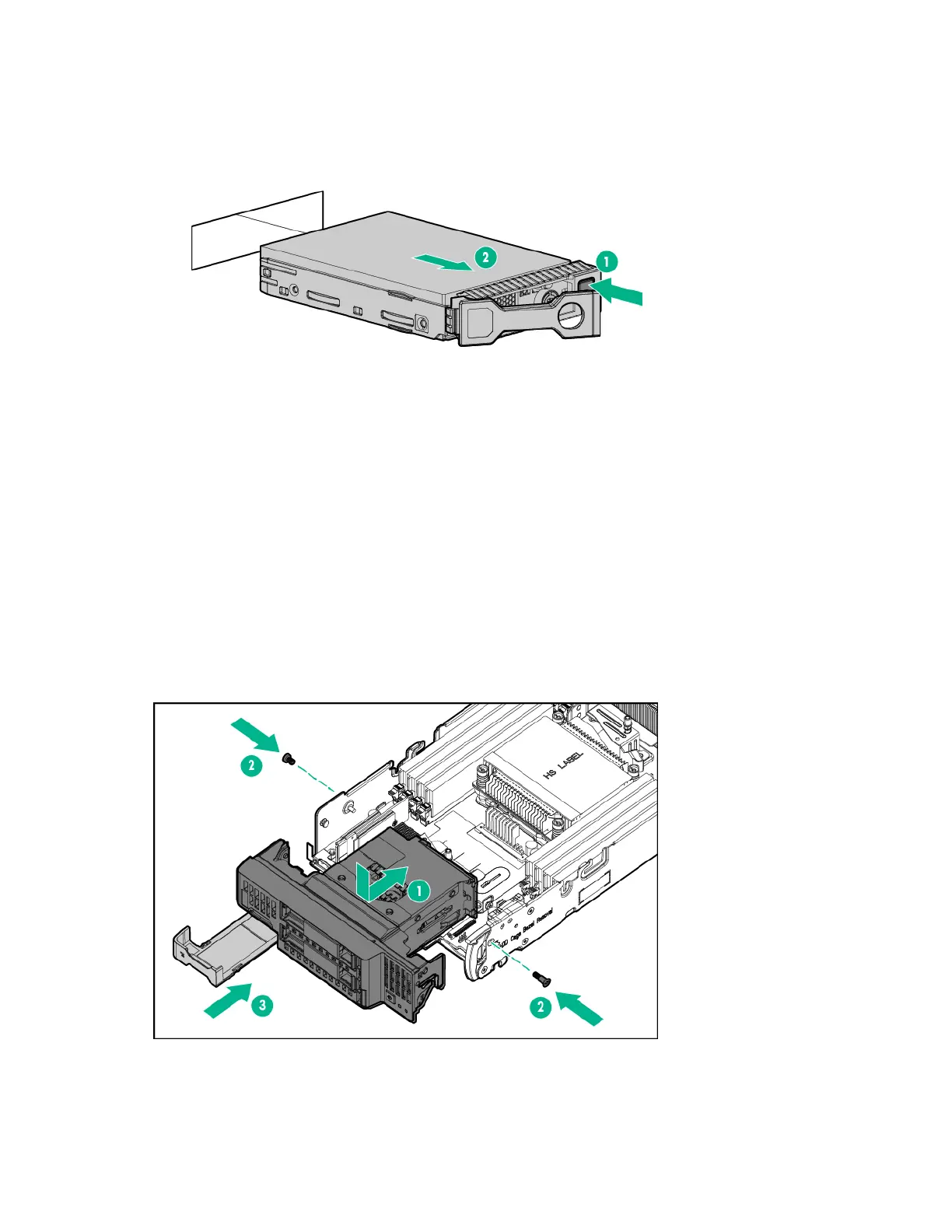

Remove a drive
1. Back up all server blade data on the drive.
2. Remove the drive.
Install the front panel/drive cage assembly
1. Power down the server blade (on page 14).
2. Remove the server blade (on page 15).
3. Place the server blade on a flat, level work surface.
4. Remove the access panel (on page 15).
5. Do one of the following:
o Remove the storage controller/NVMe pass-through board (on page 22).
o Remove the direct connect SATA cable (on page 19).
6. Install the front panel/drive cage assembly.
a. Align the pins on the chassis and slide the front panel/drive cage assembly into the server.
b. Secure the component with two T-15 screws.
c. Close the serial label pull tab.
7. Install all DIMM baffles ("Install the DIMM baffles" on page 17).
8. Do one of the following:
o Install the storage controller/NVMe pass-through board.
