Interconnect bay numbering and device mapping

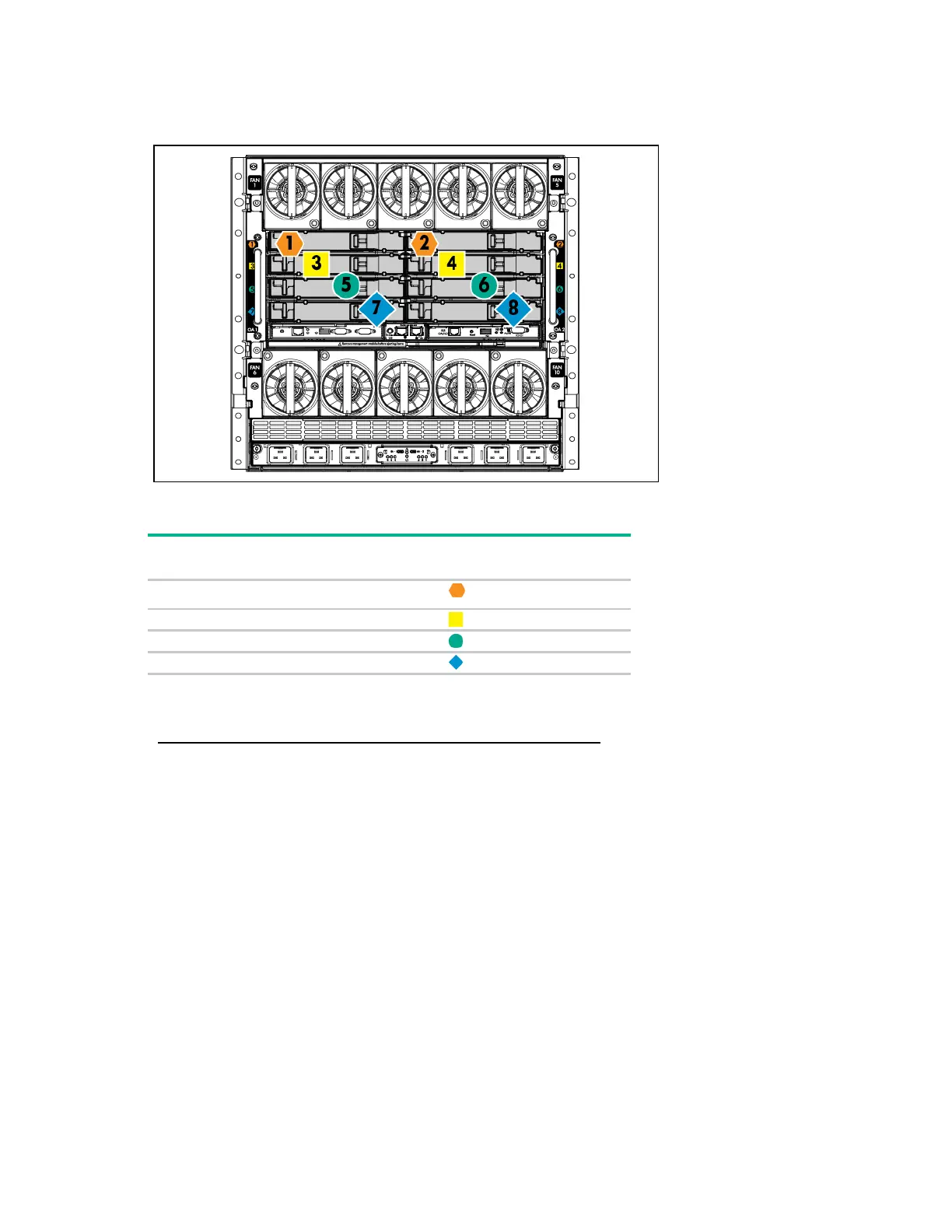

 HPE BladeSystem c7000 Enclosure
To support network connections for specific signals, install an interconnect module in the bay
corresponding to the FlexibleLOM or mezzanine signals.
Server blade signal
Interconnect
bay
Interconnect bay labels
FlexibleLOM
1 and 2
Mezzanine 1
3 and 4
Mezzanine 2
5 and 6
Mezzanine 2
7 and 8
For detailed port mapping information, see the BladeSystem enclosure installation poster or the
BladeSystem enclosure setup and installation guide on the Hewlett Packard Enterprise website
(http://www.hpe.com/support/BladeSystem-Enclosures-docs).
