Operations 18
4. Remove the access panel (on page 15).

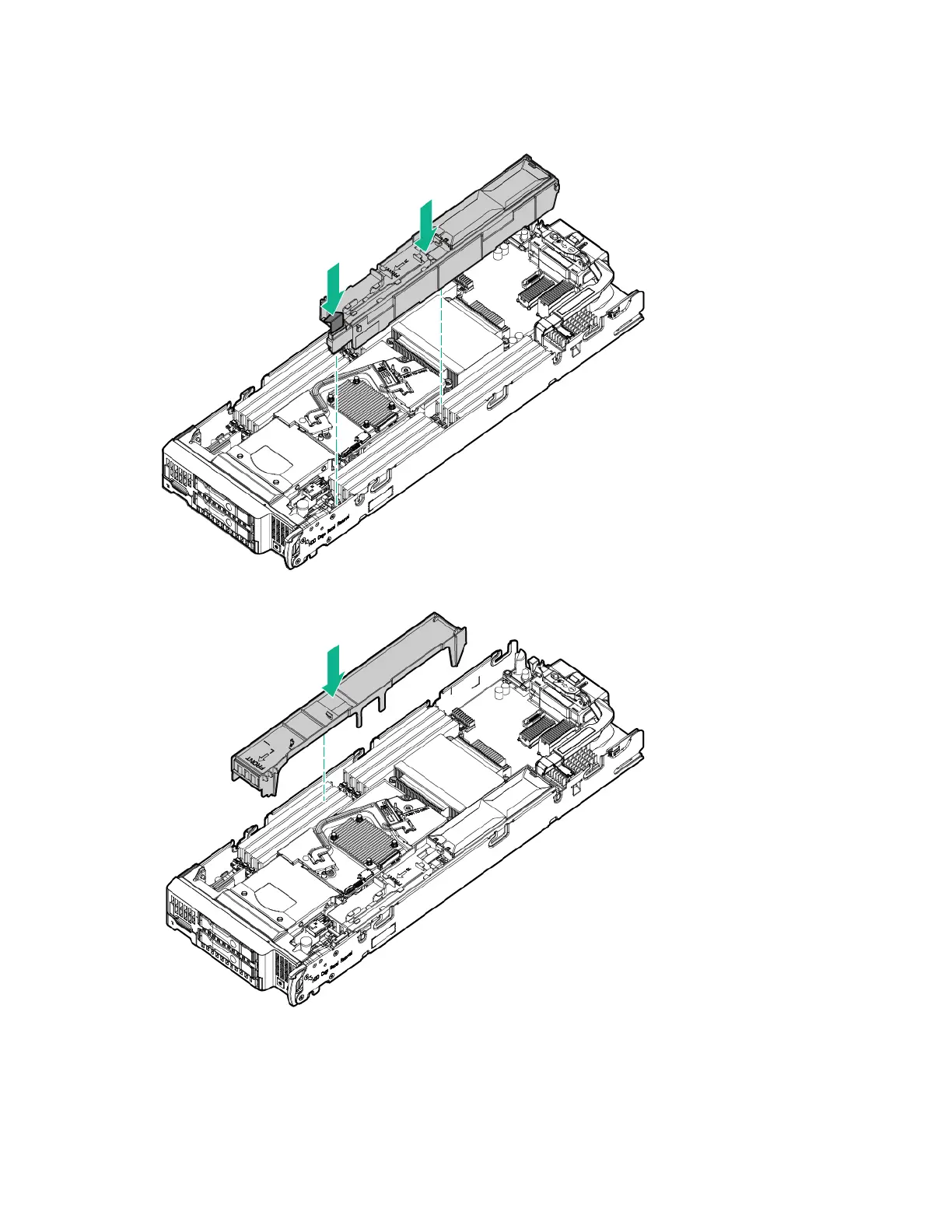

5. Install the DIMM baffle.
o DIMM baffle (right side)
o DIMM baffle (left side)
6. Install the access panel (on page 16).
7. Install the server blade (on page 28).
8. Power up the server blade (on page 14).
