ProcedureProcedure
1. Power down the server.
2. Extend the server from the rack .

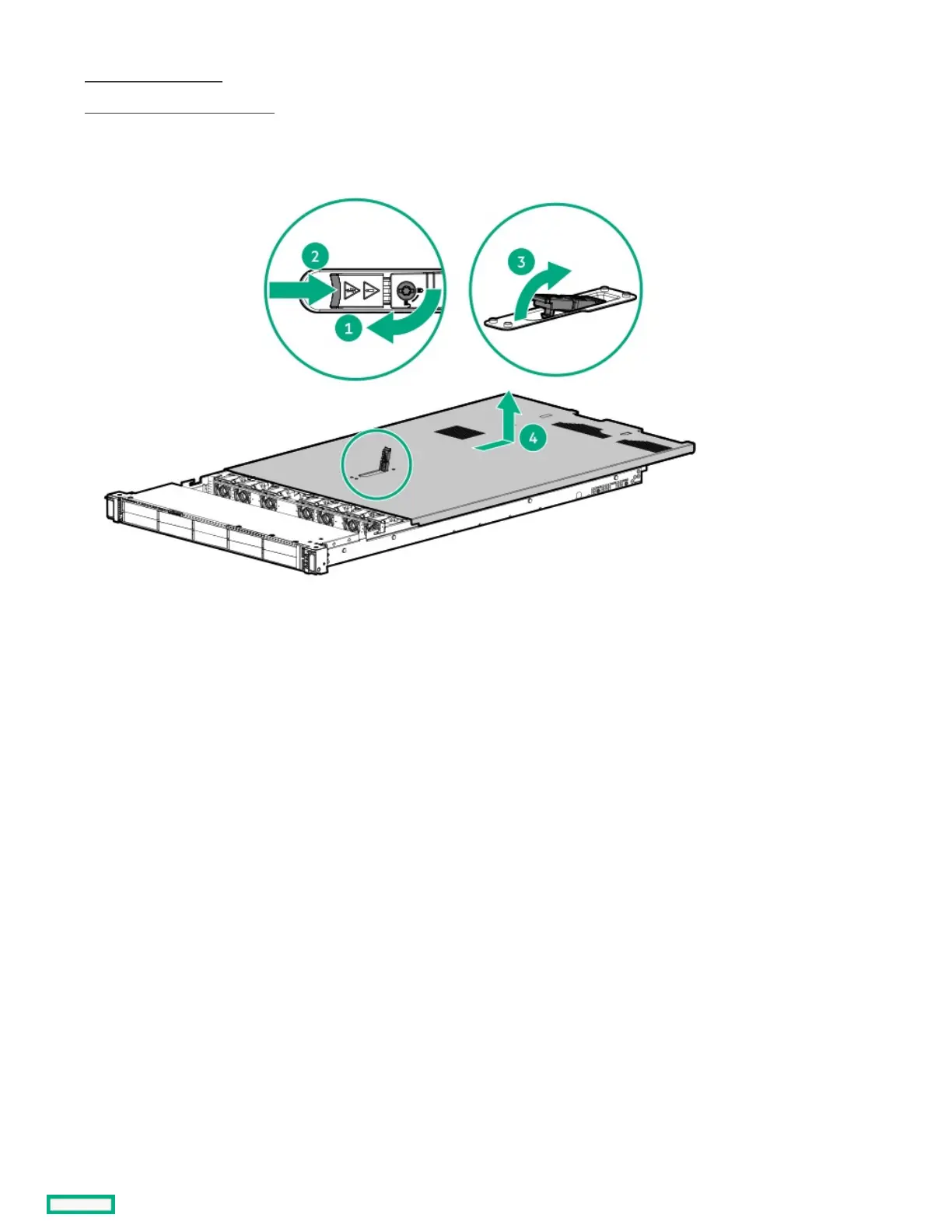

3. Open or unlock the locking latch, slide the access panel to the rear of the chassis, and remove the access panel.
Install the access panelInstall the access panel
ProcedureProcedure
1. Place the access panel on top of the server with the latch open.
Allow the panel to extend past the rear of the server approximately 1.25 cm (0.5 in).
2. Push down on the latch.
The access panel slides to a closed position.
3. Tighten the security screw on the latch, if needed.
