hpmont HD5L series User Manual

Shenzhen Hpmont Technology Co., Ltd Chapter 3 Mechanical Installation
HD5L Series Controller User Manual ―11―

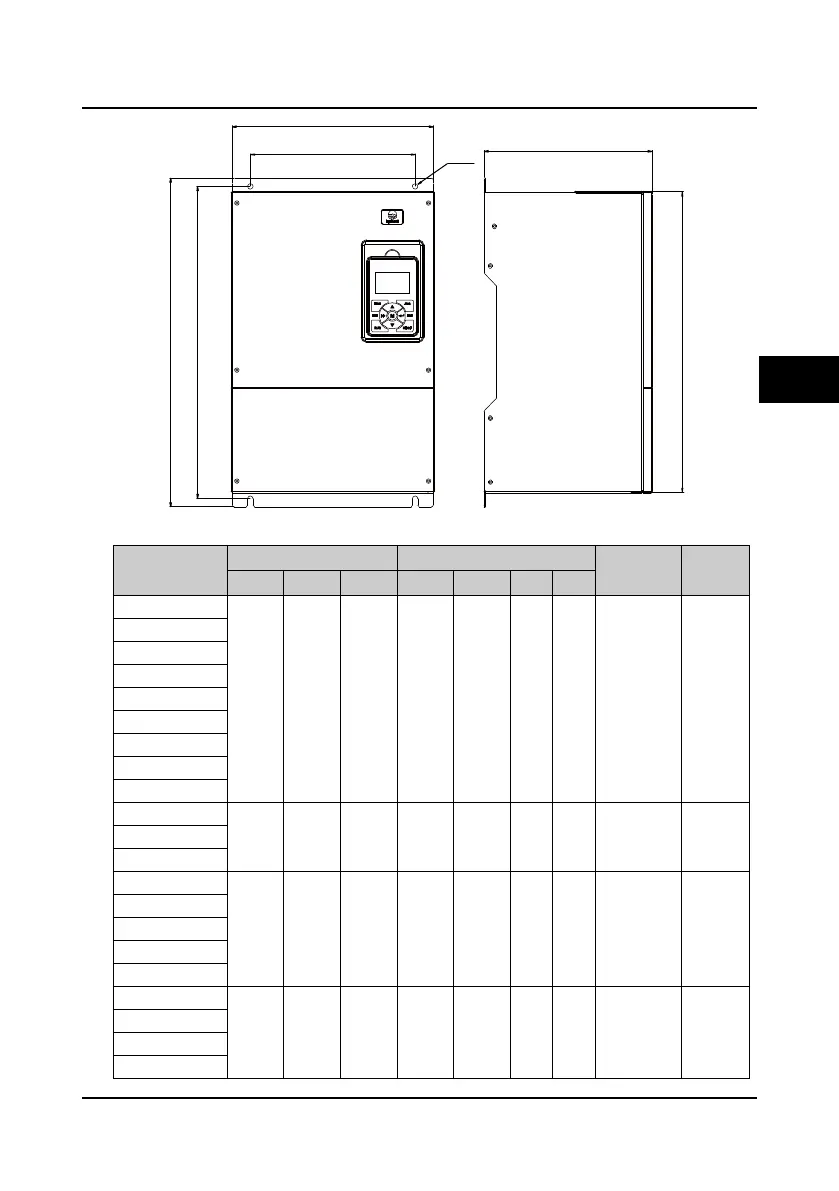

Dimensions figure 2
Table 3-1 HD5L dimensions
Model
Dimensions (mm) Mounting size (mm)
Gross weight
(kg)
Figure
W H D W1 H1 H2 d
HD5L-2S2P2
200 299 210 146 286 280 5 5.8 1
HD5L-2S3P7
HD5L-2T3P7
HD5L-2T5P5
HD5L-4T2P2
HD5L-4T3P7
HD5L-4T5P5
HD5L-4T7P5
HD5L-4T011
HD5L-2T7P5
235 353 222 167 337 330 7 8.2 1
HD5L-4T015
HD5L-4T018
HD5L-2T011
290 469 240 235 445 430 8 20.4 2
HD5L-2T015
HD5L-2T018
HD5L-4T022
HD5L-4T030
HD5L-2T022
380 598 290 260 576 550 10 48 2
HD5L-2T030
HD5L-4T037
HD5L-4T045
W
W1
H
H1
D
4-Ød
H2
3
