hpmont HD5L series User Manual

Chapter 3 Mechanical Installation Shenzhen Hpmont Technology Co., Ltd
―10― HD5L Series Controller User Manual
3.3 Installation Direction and Space Requirements
To achieve good cooling efficiency, install the controller perpendicularly and always provide the
following space to allow normal heat dissipation. The requirements on mounting space and
clearance are shown in Figure 3-1.

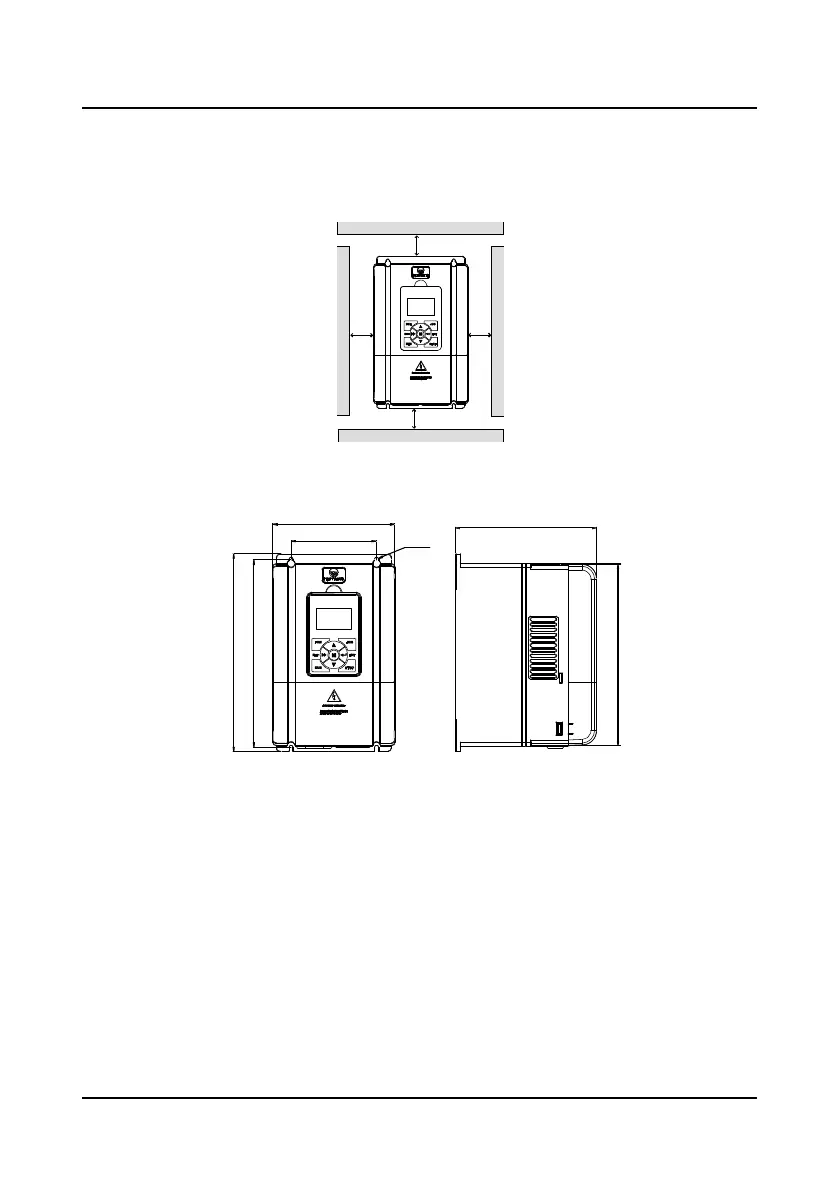

Figure 3-1 Installation of the controller
3.4 Dimensions and Mounting Size
Dimensions figure 1
≥30
≥50
≥30
≥50
D
W1
W
H
H1
4-Ød
H2
